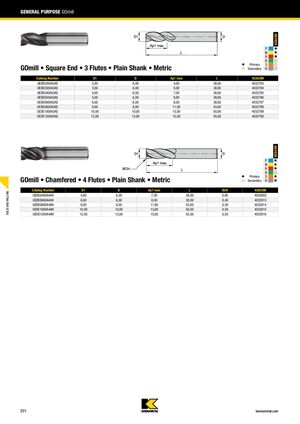

Универсальная фреза GOmill
GOmill • С прямым окончанием • 3 зуба • Цилиндрический хвостовик • Метрическая
| Артикул | D1 | D | Ap1 max | L | KC643M |
|---|---|---|---|---|---|
| UEDE0200A3AS | 2,00 | 6,00 | 4,00 | 38,00 | 4032783 |
| UEDE0300A3AS | 3,00 | 6,00 | 5,00 | 38,00 | 4032784 |
| UEDE0400A3AS | 4,00 | 6,00 | 7,00 | 38,00 | 4032785 |
| UEDE0500A3AS | 5,00 | 6,00 | 8,00 | 38,00 | 4032786 |
| UEDE0600A3AS | 6,00 | 6,00 | 8,00 | 38,00 | 4032787 |
| UEDE0800A3AS | 8,00 | 8,00 | 11,00 | 43,00 | 4032788 |
| UEDE1000A3AS | 10,00 | 10,00 | 13,00 | 50,00 | 4032789 |
| UEDE1200A3AS | 12,00 | 12,00 | 15,00 | 55,00 | 4032790 |
GOmill • С фаской • 4 зуба • Цилиндрический хвостовик • Метрическая
| Артикул | D1 | D | Ap1 max | L | BCH | KC643M |
|---|---|---|---|---|---|---|
| UEDE0400A4AH | 4,00 | 6,00 | 7,00 | 38,00 | 0,40 | 4032802 |
| UEDE0600A4AH | 6,00 | 6,00 | 8,00 | 38,00 | 0,40 | 4032813 |
| UEDE0800A4AH | 8,00 | 8,00 | 11,00 | 43,00 | 0,40 | 4032814 |
| UEDE1000A4AH | 10,00 | 10,00 | 13,00 | 50,00 | 0,50 | 4032815 |
| UEDE1200A4AH | 12,00 | 12,00 | 15,00 | 55,00 | 0,50 | 4032816 |
