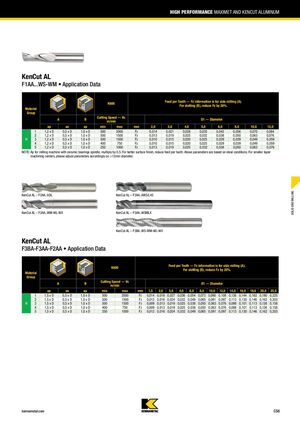

HIGH PERFORMANCE MAXIMET AND KENCUT ALUMINUM KenCut AL F1AA...WS-WM • Application Data Feed per Tooth — Fz information is for side milling (A). K600 For slotting (B), reduce Fz by 20%. Material Group Cutting Speed — Vc A B D1 — Diameter m/min ap ae ap min max mm 2,0 3,0 4,0 5,0 6,0 8,0 10,0 12,0 1 1,2 x D 0,5 x D 1,0 x D 500 2000 Fz 0,014 0,021 0,028 0,035 0,042 0,056 0,070 0,084 2 1,2 x D 0,5 x D 1,0 x D 500 1500 Fz 0,013 0,019 0,025 0,032 0,038 0,050 0,063 0,076 N 3 1,2 x D 0,5 x D 1,0 x D 500 1500 Fz 0,010 0,015 0,020 0,025 0,029 0,039 0,049 0,059 4 1,2 x D 0,5 x D 1,0 x D 400 750 Fz 0,010 0,015 0,020 0,025 0,029 0,039 0,049 0,059 5 1,2 x D 0,5 x D 1,0 x D 250 1000 Fz 0,013 0,019 0,025 0,032 0,038 0,050 0,063 0,076 NOTE: Ap for milling machine with ceramic bearings spindle, multiply by 0,5. For better surface finish, reduce feed per tooth. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. SOLID END MILLING KenCut AL – F2AA..ADL KenCut AL – F3AA..AWS/L45 KenCut AL – F2AA..WM-WL-WX KenCut AL – F3AA..WSMLX KenCut AL – F3BA..WS-WM-WL-WX KenCut AL F3BA-F3AA-F2AA • Application Data Feed per Tooth — Fz information is for side milling (A). K600 For slotting (B), reduce Fz by 20%. Material Group Cutting Speed — Vc A B D1 — Diameter m/min ap ae ap min max mm 1,5 2,0 3,0 4,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 25,0 1 1,5 x D 0,5 x D 1,0 x D 500 2000 Fz 0,014 0,018 0,027 0,036 0,054 0,072 0,090 0,108 0,126 0,144 0,162 0,180 0,225 2 1,5 x D 0,5 x D 1,0 x D 500 1500 Fz 0,012 0,016 0,024 0,032 0,049 0,065 0,081 0,097 0,113 0,130 0,146 0,162 0,203 N 3 1,5 x D 0,5 x D 1,0 x D 500 1500 Fz 0,009 0,013 0,019 0,025 0,038 0,050 0,063 0,076 0,088 0,101 0,113 0,126 0,158 4 1,5 x D 0,5 x D 1,0 x D 400 750 Fz 0,009 0,013 0,019 0,025 0,038 0,050 0,063 0,076 0,088 0,101 0,113 0,126 0,158 5 1,5 x D 0,5 x D 1,0 x D 250 1000 Fz 0,012 0,016 0,024 0,032 0,049 0,065 0,081 0,097 0,113 0,130 0,146 0,162 0,203 kennametal.com C58
