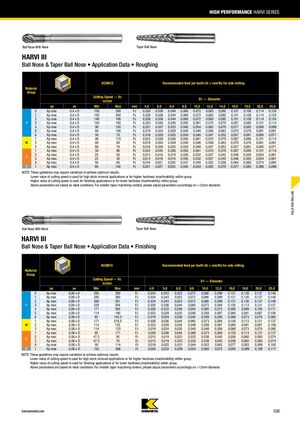

HIGH PERFORMANCE HARVI SERIES Ball Nose With Neck Taper Ball Nose HARVI III Ball Nose & Taper Ball Nose • Application Data • Roughing KCSM15 Recommended feed per tooth (fz = mm/th) for side milling. Material Group Cutting Speed — Vc D1 — Diameter m/min ap ae Min Max mm 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 25,0 0 Ap max 0,4 x D 150 200 Fz 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 0,124 1 Ap max 0,4 x D 150 200 Fz 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 0,124 2 Ap max 0,4 x D 140 190 Fz 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 0,124 P 3 Ap max 0,4 x D 120 160 Fz 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 0,114 4 Ap max 0,4 x D 90 150 Fz 0,021 0,027 0,033 0,045 0,054 0,062 0,070 0,077 0,083 0,088 0,098 5 Ap max 0,4 x D 60 100 Fz 0,019 0,024 0,029 0,040 0,048 0,056 0,063 0,070 0,076 0,081 0,091 6 Ap max 0,4 x D 50 75 Fz 0,016 0,020 0,025 0,034 0,040 0,047 0,052 0,057 0,061 0,065 0,071 1 Ap max 0,4 x D 90 115 Fz 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 0,114 M 2 Ap max 0,4 x D 60 80 Fz 0,019 0,024 0,029 0,040 0,048 0,056 0,063 0,070 0,076 0,081 0,091 3 Ap max 0,4 x D 60 70 Fz 0,016 0,020 0,025 0,034 0,040 0,047 0,052 0,057 0,061 0,065 0,071 1 Ap max 0,4 x D 50 90 Fz 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 0,114 2 Ap max 0,4 x D 25 50 Fz 0,013 0,016 0,019 0,026 0,032 0,037 0,042 0,046 0,050 0,054 0,061 S 3 Ap max 0,4 x D 25 40 Fz 0,013 0,016 0,019 0,026 0,032 0,037 0,042 0,046 0,050 0,054 0,061 4 Ap max 0,4 x D 50 60 Fz 0,016 0,021 0,026 0,037 0,045 0,052 0,058 0,064 0,069 0,074 0,084 H 1 Ap max 0,4 x D 80 140 Fz 0,021 0,027 0,033 0,045 0,054 0,062 0,070 0,077 0,083 0,088 0,098 NOTE: These guidelines may require variations to achieve optimum results. Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. SOLID END MILLING Ball Nose With Neck Taper Ball Nose HARVI III Ball Nose & Taper Ball Nose • Application Data • Finishing KCSM15 Recommended feed per tooth (fz = mm/th) for side milling. Material Group Cutting Speed — Vc D1 — Diameter m/min ap ae Min Max mm 4,0 5,0 6,0 8,0 10,0 12,0 16,0 18,0 20,0 25,0 0 Ap max 0,06 x D 285 380 Fz 0,034 0,043 0,053 0,072 0,086 0,099 0,121 0,130 0,137 0,149 1 Ap max 0,06 x D 285 380 Fz 0,034 0,043 0,053 0,072 0,086 0,099 0,121 0,130 0,137 0,149 2 Ap max 0,06 x D 266 361 Fz 0,034 0,043 0,053 0,072 0,086 0,099 0,121 0,130 0,137 0,149 P 3 Ap max 0,06 x D 228 304 Fz 0,028 0,036 0,044 0,060 0,073 0,084 0,105 0,113 0,121 0,137 4 Ap max 0,06 x D 171 285 Fz 0,026 0,033 0,039 0,054 0,065 0,075 0,092 0,099 0,106 0,117 5 Ap max 0,06 x D 114 190 Fz 0,023 0,029 0,035 0,048 0,058 0,067 0,084 0,091 0,097 0,109 6 Ap max 0,06 x D 95 142,5 Fz 0,019 0,024 0,030 0,040 0,048 0,056 0,068 0,073 0,078 0,085 1 Ap max 0,06 x D 171 218,5 Fz 0,028 0,036 0,044 0,060 0,073 0,084 0,105 0,113 0,121 0,137 M 2 Ap max 0,06 x D 114 152 Fz 0,023 0,029 0,035 0,048 0,058 0,067 0,084 0,091 0,097 0,109 3 Ap max 0,06 x D 114 133 Fz 0,019 0,024 0,030 0,040 0,048 0,056 0,068 0,073 0,078 0,085 1 Ap max 0,06 x D 95 171 Fz 0,028 0,036 0,044 0,060 0,073 0,084 0,105 0,113 0,121 0,137 2 Ap max 0,06 x D 47.5 95 Fz 0,015 0,019 0,023 0,032 0,038 0,045 0,056 0,060 0,065 0,074 S 3 Ap max 0,06 x D 47.5 76 Fz 0,015 0,019 0,023 0,032 0,038 0,045 0,056 0,060 0,065 0,074 4 Ap max 0,06 x D 95 114 Fz 0,019 0,025 0,031 0,044 0,053 0,062 0,077 0,083 0,089 0,100 H 1 Ap max 0,06 x D 152 266 Fz 0,026 0,033 0,039 0,054 0,065 0,075 0,092 0,099 0,106 0,117 NOTE: These guidelines may require variations to achieve optimum results. Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. kennametal.com C32
