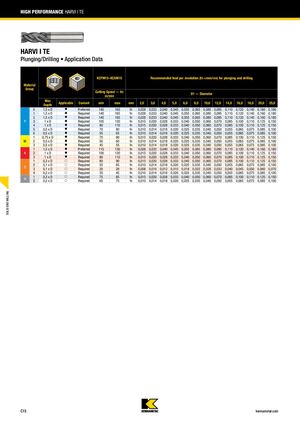

HIGH PERFORMANCE HARVI I TE HARVI I TE Plunging/Drilling • Application Data KCPM15–KCSM15 Recommended feed per revolution (fn =mm/rev) for plunging and drilling Material Group Cutting Speed — Vc D1 — Diameter m/min Max Applicable Coolant min max mm 2,0 3,0 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 25,0 Depth 0 1,5 x D 䢇 Preferred 140 165 fn 0,028 0,033 0,040 0,045 0,055 0,065 0,080 0,095 0,110 0,120 0,140 0,160 0,180 1 1,5 x D 䢇 Required 140 165 fn 0,028 0,033 0,040 0,045 0,055 0,065 0,080 0,095 0,110 0,120 0,140 0,160 0,180 2 1,5 x D 䢇 Required 140 165 fn 0,028 0,033 0,040 0,045 0,055 0,065 0,080 0,095 0,110 0,120 0,140 0,160 0,180 P 3 1xD 䢇 Required 105 120 fn 0,015 0,020 0,028 0,033 0,040 0,050 0,060 0,070 0,085 0,100 0,110 0,125 0,150 4 1xD 䢇 Required 90 110 fn 0,015 0,020 0,028 0,033 0,040 0,050 0,060 0,070 0,085 0,100 0,110 0,125 0,150 5 0,5 x D 䢇 Required 70 80 fn 0,010 0,014 0,018 0,020 0,025 0,035 0,040 0,050 0,055 0,065 0,075 0,085 0,100 6 0,5 x D 䢇 Required 55 65 fn 0,010 0,014 0,018 0,020 0,025 0,035 0,040 0,050 0,055 0,065 0,075 0,085 0,100 1 0,75 x D 䢇 Required 75 90 fn 0,015 0,020 0,028 0,033 0,040 0,050 0,060 0,070 0,085 0,100 0,110 0,125 0,150 M 2 0,5 x D 䢇 Required 50 60 fn 0,010 0,014 0,018 0,020 0,025 0,035 0,040 0,050 0,055 0,065 0,075 0,085 0,100 3 0,5 x D 䢇 Required 45 55 fn 0,010 0,014 0,018 0,020 0,025 0,035 0,040 0,050 0,055 0,065 0,075 0,085 0,100 1 1,5 x D 䢇 Preferred 110 130 fn 0,028 0,033 0,040 0,045 0,055 0,065 0,080 0,095 0,110 0,120 0,140 0,160 0,180 K 2 1xD 䢇 Required 100 120 fn 0,015 0,020 0,028 0,033 0,040 0,050 0,060 0,070 0,085 0,100 0,110 0,125 0,150 3 1xD 䢇 Required 90 110 fn 0,015 0,020 0,028 0,033 0,040 0,050 0,060 0,070 0,085 0,100 0,110 0,125 0,150 1 0,3 x D 嘷 Required 80 90 fn 0,015 0,020 0,028 0,033 0,040 0,050 0,060 0,070 0,085 0,100 0,110 0,125 0,150 2 0,1 x D 嘷 Required 55 65 fn 0,010 0,014 0,018 0,020 0,025 0,035 0,040 0,050 0,055 0,065 0,075 0,085 0,100 S 嘷 3 0,1 x D Required 20 28 fn 0,008 0,010 0,012 0,015 0,018 0,022 0,028 0,033 0,040 0,045 0,050 0,060 0,070 4 0,2 x D 嘷 Required 35 45 fn 0,010 0,014 0,018 0,020 0,025 0,035 0,040 0,050 0,055 0,065 0,075 0,085 0,100 1 0,3 x D 嘷 Required 75 85 fn 0,015 0,020 0,028 0,033 0,040 0,050 0,060 0,070 0,085 0,100 0,110 0,125 0,150 H 嘷 2 0,2 x D Required 65 75 fn 0,010 0,014 0,018 0,020 0,025 0,035 0,040 0,050 0,055 0,065 0,075 0,085 0,100 SOLID END MILLING C15 kennametal.com
