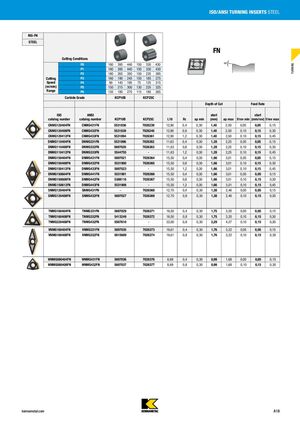

ISO/ANSI TURNING INSERTS STEEL MG-FN STEEL FN Cutting Conditions TURNING P0 180 395 440 150 330 430 P1 180 395 440 150 330 430 P2 180 265 350 150 235 385 Cutting P3 160 190 245 150 185 275 Speed P4 90 145 195 75 125 215 (m/min) P5 150 215 300 130 235 325 Range P6 120 180 270 115 180 265 Carbide Grade KCP10B KCP25C Depth of Cut Feed Rate ISO ANSI start start catalog number catalog number KCP10B KCP25C L10 Rı ap min (mm) ap max f/rev min (mm/rev) f/rev max CNMG120404FN CNMG431FN 5531836 7026239 12,90 0,4 0,30 1,40 2,50 0,05 0,05 0,15 CNMG120408FN CNMG432FN 5531839 7026240 12,90 0,8 0,30 1,40 2,50 0,10 0,15 0,30 CNMG120412FN CNMG433FN 5531894 7026361 12,90 1,2 0,30 1,40 2,50 0,10 0,15 0,45 DNMG110404FN DNMG331FN 5531896 7026362 11,63 0,4 0,30 1,28 2,25 0,05 0,05 0,15 DNMG110408FN DNMG332FN 5697020 7026363 11,63 0,8 0,30 1,28 2,25 0,10 0,15 0,30 DNMG110412FN DNMG333FN 5544755 - 11,63 1,2 0,30 1,28 2,25 0,10 0,15 0,45 DNMG150404FN DNMG431FN 5697021 7026364 15,50 0,4 0,30 1,66 3,01 0,05 0,05 0,15 DNMG150408FN DNMG432FN 5531900 7026365 15,50 0,8 0,30 1,66 3,01 0,10 0,15 0,30 DNMG150412FN DNMG433FN 5697023 - 15,50 1,2 0,30 1,66 3,01 0,10 0,15 0,45 DNMG150604FN DNMG441FN 5531901 7026366 15,50 0,4 0,30 1,66 3,01 0,05 0,05 0,15 DNMG150608FN DNMG442FN 5388116 7026367 15,50 0,8 0,30 1,66 3,01 0,10 0,15 0,30 DNMG150612FN DNMG443FN 5531908 - 15,50 1,2 0,30 1,66 3,01 0,10 0,15 0,45 SNMG120404FN SNMG431FN - 7026368 12,70 0,4 0,30 1,38 2,46 0,05 0,05 0,15 SNMG120408FN SNMG432FN 5697027 7026369 12,70 0,8 0,30 1,38 2,46 0,10 0,15 0,30 TNMG160404FN TNMG331FN 5697029 7026371 16,50 0,4 0,30 1,75 3,20 0,05 0,05 0,15 TNMG160408FN TNMG332FN 5413249 7026372 16,50 0,8 0,30 1,75 3,20 0,10 0,15 0,30 TNMG220408FN TNMG432FN 5507610 - 22,00 0,8 0,30 2,29 4,27 0,10 0,15 0,30 VNMG160404FN VNMG331FN 5697035 7026373 16,61 0,4 0,30 1,76 3,22 0,05 0,05 0,15 VNMG160408FN VNMG332FN 5615609 7026374 16,61 0,8 0,30 1,76 3,22 0,10 0,15 0,30 WNMG080404FN WNMG431FN 5697036 7026376 8,69 0,4 0,30 0,99 1,68 0,05 0,05 0,15 WNMG080408FN WNMG432FN 5697037 7026377 8,69 0,8 0,30 0,99 1,68 0,10 0,15 0,30 kennametal.com A18
