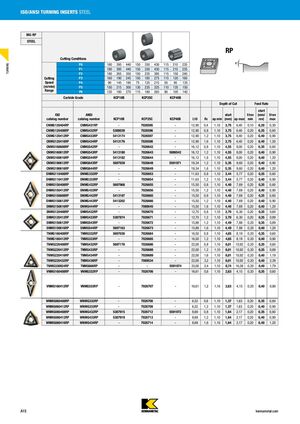

ISO/ANSI TURNING INSERTS STEEL MG-RP STEEL RP Cutting Conditions TURNING P0 180 395 440 150 330 430 115 210 235 P1 180 395 440 150 330 430 115 210 235 P2 180 265 350 150 235 385 115 150 240 Cutting P3 160 190 245 150 185 275 115 120 160 Speed P4 90 145 195 75 125 215 50 95 135 (m/min) P5 150 215 300 130 235 325 110 135 150 Range P6 120 180 270 115 180 265 90 105 140 Carbide Grade KCP10B KCP25C KCP40B Depth of Cut Feed Rate start ISO ANSI start f/rev (mm/ f/rev catalog number catalog number KCP10B KCP25C KCP40B L10 Rı ap min (mm) ap max min rev) max CNMG120404RP CNMG431RP - 7026595 - 12,90 0,4 1,10 3,75 6,40 0,10 0,20 0,30 CNMG120408RP CNMG432RP 5388039 7026596 - 12,90 0,8 1,10 3,75 6,40 0,20 0,35 0,60 CNMG120412RP CNMG433RP 5413174 7026597 - 12,90 1,2 1,10 3,75 6,40 0,20 0,40 0,90 CNMG120416RP CNMG434RP 5413176 7026598 - 12,90 1,6 1,10 3,75 6,40 0,20 0,40 1,20 CNMG160608RP CNMG542RP - 7026642 - 16,12 0,8 1,10 4,55 8,00 0,20 0,35 0,60 CNMG160612RP CNMG543RP 5413180 7026643 5886542 16,12 1,2 1,10 4,55 8,00 0,20 0,40 0,90 CNMG160616RP CNMG544RP 5413182 7026644 - 16,12 1,6 1,10 4,55 8,00 0,20 0,40 1,20 CNMG190612RP CNMG643RP 5697939 7026648 5591971 19,34 1,2 1,10 5,35 9,60 0,20 0,40 0,90 CNMG190616RP CNMG644RP - 7026649 - 19,34 1,6 1,10 5,35 9,60 0,20 0,40 1,20 DNMG110408RP DNMG332RP - 7026653 - 11,63 0,8 1,10 3,44 5,77 0,20 0,35 0,60 DNMG110412RP DNMG333RP - 7026654 - 11,63 1,2 1,10 3,44 5,77 0,20 0,40 0,90 DNMG150408RP DNMG432RP 5697968 7026655 - 15,50 0,8 1,10 4,40 7,69 0,20 0,35 0,60 DNMG150412RP DNMG433RP - 7026656 - 15,50 1,2 1,10 4,40 7,69 0,20 0,40 0,90 DNMG150608RP DNMG442RP 5413197 7026665 - 15,50 0,8 1,10 4,40 7,69 0,20 0,35 0,60 DNMG150612RP DNMG443RP 5413202 7026666 - 15,50 1,2 1,10 4,40 7,69 0,20 0,40 0,90 DNMG150616RP DNMG444RP - 7088645 - 15,50 1,6 1,10 4,40 7,69 0,20 0,40 1,20 SNMG120408RP SNMG432RP - 7026670 - 12,70 0,8 1,10 3,70 6,30 0,20 0,35 0,60 SNMG120412RP SNMG433RP 5387874 7026671 - 12,70 1,2 1,10 3,70 6,30 0,20 0,35 0,89 SNMG150612RP SNMG543RP - 7026672 - 15,88 1,2 1,10 4,49 7,88 0,20 0,35 0,89 SNMG150616RP SNMG544RP 5697163 7026673 - 15,88 1,6 1,10 4,49 7,88 0,20 0,40 1,20 TNMG160408RP TNMG332RP 5697030 7026684 - 16,50 0,8 1,10 4,65 8,19 0,20 0,35 0,60 TNMG160412RP TNMG333RP - 7026685 - 16,50 1,2 1,10 4,65 8,19 0,20 0,40 0,90 TNMG220408RP TNMG432RP 5697178 7026686 - 22,00 0,8 1,10 6,01 10,92 0,20 0,35 0,60 TNMG220412RP TNMG433RP - 7026688 - 22,00 1,2 1,10 6,01 10,92 0,20 0,35 0,89 TNMG220416RP TNMG434RP - 7026689 - 22,00 1,6 1,10 6,01 10,92 0,20 0,40 1,19 TNMG220432RP TNMG438RP - 7089534 - 22,00 3,2 1,10 6,01 10,92 0,20 0,40 2,39 TNMG330924RP TNMG666RP - - 5591974 33,00 2,4 1,10 8,74 16,38 0,20 0,40 1,79 VNMG160408RP VNMG332RP - 7026706 - 16,61 0,8 1,10 2,63 4,15 0,20 0,35 0,60 VNMG160412RP VNMG333RP - 7026707 - 16,61 1,2 1,10 2,63 4,15 0,20 0,40 0,90 WNMG060408RP WNMG332RP - 7026708 - 6,52 0,8 1,10 1,37 1,63 0,20 0,35 0,60 WNMG060412RP WNMG333RP - 7026709 - 6,52 1,2 1,10 1,37 1,63 0,20 0,40 0,90 WNMG080408RP WNMG432RP 5387915 7026712 5591972 8,69 0,8 1,10 1,64 2,17 0,20 0,35 0,60 WNMG080412RP WNMG433RP 5387919 7026713 - 8,69 1,2 1,10 1,64 2,17 0,20 0,40 0,90 WNMG080416RP WNMG434RP - 7026714 - 8,69 1,6 1,10 1,64 2,17 0,20 0,40 1,20 A15 kennametal.com
