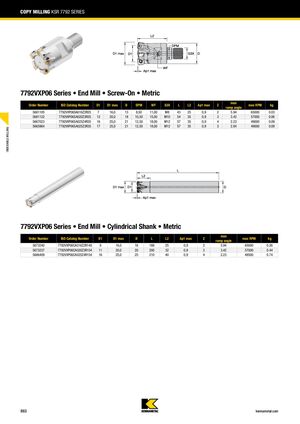

Серия 7792VXP06 • Концевая фреза • Со сменной головкой • Метрическая система
| Номер заказа | Номер по каталогу ISO | D1 | D1 макс | D | DPM | WF | G3X | L | L2 | Ap1 макс | Z | Угол наклона макс | Макс. об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5681105 | 7792VXP06SA016Z2R25 | 7 | 16,0 | 13 | 8,50 | 11,00 | M8 | 43 | 25 | 0,9 | 2 | 5.94 | 65000 | 0.03 |
| 5681122 | 7792VXP06SA020Z3R35 | 12 | 20,0 | 18 | 10,50 | 15,00 | M10 | 54 | 35 | 0,9 | 3 | 3.42 | 57000 | 0.06 |
| 5667023 | 7792VXP06SA025Z4R35 | 16 | 25,0 | 21 | 12,50 | 18,00 | M12 | 57 | 35 | 0,9 | 4 | 2.23 | 49000 | 0.09 |
| 5665964 | 7792VXP06SA025Z3R35 | 17 | 25,0 | 21 | 12,50 | 18,00 | M12 | 57 | 35 | 0,9 | 3 | 2.84 | 49000 | 0.09 |
Серия 7792VXP06 • Концевая фреза • Цилиндрический хвостовик • Метрическая система
| Номер заказа | Номер по каталогу ISO | D1 | D1 макс | D | L | L2 | Ap1 макс | Z | Угол наклона макс | Макс. об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5673240 | 7792VXP06CA016Z2R140 | 8 | 16,0 | 16 | 188 | 25 | 0,9 | 2 | 5.94 | 65000 | 0.26 |
| 5673237 | 7792VXP06CA020Z3R154 | 11 | 20,0 | 20 | 200 | 32 | 0,9 | 3 | 3.42 | 57000 | 0.44 |
| 5666409 | 7792VXP06CA025Z4R154 | 16 | 25,0 | 25 | 210 | 40 | 0,9 | 4 | 2.23 | 48500 | 0.74 |
