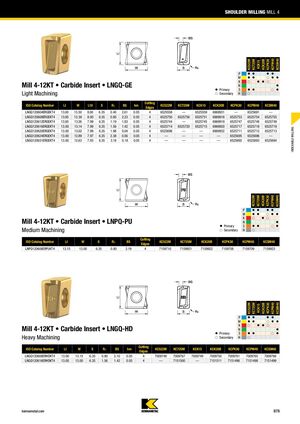

Mill 4-12KT • Твердосплавная пластина • LNGQ-GE
Легкое фрезерование
| Номер по каталогу ISO | LI | W | L10 | S | RH | BS | hm | Режущие ребра | KC522M | KC725M | KCK15 | KCK20B | KCPK30 | KCPM40 | KCSM40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LNGQ120604ERGEKT4 | 13.00 | 13.50 | 8.00 | 6.35 | 0.40 | 2.61 | 0.05 | 4 | 6525558 | — | 6525559 | 6969931 | — | 6525691 | — |
| LNGQ120608ERGEKT4 | 13.00 | 13.39 | 8.00 | 6.35 | 0.80 | 2.23 | 0.05 | 4 | 6525750 | 6525756 | 6525751 | 6969918 | 6525753 | 6525754 | 6525755 |
| LNGQ120612ERGEKT4 | 13.00 | 13.26 | 7.99 | 6.35 | 1.19 | 1.83 | 0.05 | 4 | 6525744 | — | 6525745 | 6969919 | 6525747 | 6525748 | 6525749 |
| LNGQ120616ERGEKT4 | 13.00 | 13.14 | 7.99 | 6.35 | 1.56 | 1.42 | 0.05 | 4 | 6525714 | 6525720 | 6525715 | 6969920 | 6525717 | 6525718 | 6525719 |
| LNGQ120620ERGEKT4 | 13.00 | 13.02 | 7.99 | 6.35 | 1.98 | 0.04 | 0.05 | 4 | 6525698 | — | — | 6969932 | 6525711 | 6525712 | 6525713 |
| LNGQ120624ERGEKT4 | 13.00 | 12.89 | 7.97 | 6.35 | 2.38 | 0.56 | 0.05 | 4 | — | — | — | — | 6525695 | 6525696 | — |
| LNGQ120631ERGEKT4 | 13.00 | 12.63 | 7.93 | 6.35 | 3.18 | 0.18 | 0.05 | 4 | — | — | — | — | 6525692 | 6525693 | 6525694 |
Mill 4-12KT • Твердосплавная пластина • LNPQ-PU
Среднее фрезерование
| Номер по каталогу ISO | LI | W | S | RH | BS | Режущие ребра | KC522M | KC725M | KCK20B | KCPK30 | KCPM40 | KCSM40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LNPQ120608ERPUKT4 | 13.15 | 13.00 | 6.35 | 0.80 | 2.19 | 4 | 7159710 | 7159921 | 7159922 | 7159708 | 7159709 | 7159923 |
Mill 4-12KT • Твердосплавная пластина • LNGQ-HD
Тяжелое фрезерование
| Номер по каталогу ISO | LI | W | S | RH | BS | hm | Режущие ребра | KC522M | KC725M | KCK15 | KCK20B | KCPK30 | KCPM40 | KCSM40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LNGQ120608ERHDKT4 | 13.00 | 13.15 | 6.35 | 0.80 | 2.10 | 0.05 | 4 | 7009748 | 7009767 | 7009749 | 7009750 | 7009761 | 7009765 | 7009766 |
| LNGQ120616ERHDKT4 | 13.00 | 13.00 | 6.35 | 1.56 | 1.42 | 0.05 | 4 | — | 7151500 | — | 7151511 | 7151496 | 7151498 | 7151499 |
