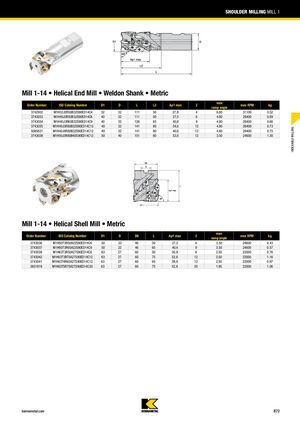

SHOULDER MILLING MILL 1 Mill 1-14 • Helical End Mill • Weldon Shank • Metric max Order Number ISO Catalog Number D1 D L L2 Ap1 max Z max RPM kg ramp angle 3742932 M1H32J2R50B32S90ED14C4 32 32 111 50 27,8 4 6.80 31100 0.52 3743033 M1H40J3R50B32S90ED14C6 40 32 111 50 27,5 6 4.80 28400 0.59 3743034 M1H40J3R65B32S90ED14C9 40 32 126 65 40,8 9 4.80 28400 0.66 3743035 M1H40J3R80B32S90ED14C12 40 32 141 80 54,0 12 4.80 28400 0.73 INDEXABLE MILLING 5085631 M1H40J4R80B32S90ED14C12 40 32 141 80 40,8 12 4.80 28400 0.75 3743038 M1H50J3R80B40S90ED14C12 50 40 151 80 53,5 12 3.50 24600 1.30 Mill 1-14 • Helical Shell Mill • Metric max Order Number ISO Catalog Number D1 D D6 L Ap1 max Z max RPM kg ramp angle 3743036 M1H50T3R50A22S90ED14C6 50 22 46 50 27,3 6 3.50 24600 0.43 3743037 M1H50T3R65A22S90ED14C9 50 22 46 65 40,4 9 3.50 24600 0.57 3743039 M1H63T3R50A27S90ED14C6 63 27 60 50 26,9 6 2.50 22000 0.76 3743042 M1H63T3R75A27S90ED14C12 63 27 60 75 52,8 12 2.50 22000 1.16 3743041 M1H63T4R65A27S90ED14C12 63 27 60 65 39,9 12 2.50 22000 0.97 3831819 M1H63T5R75A27S90ED14C20 63 27 60 75 52,8 20 1.95 22000 1.06 kennametal.com B72
