ТОРЦЕВОЕ ФРЕЗЕРОВАНИЕ MILL 1

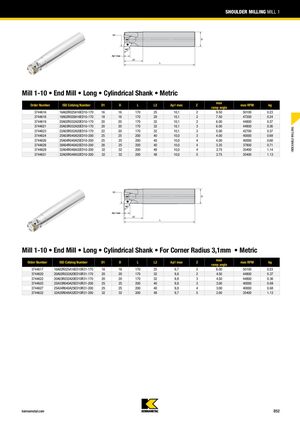

Mill 1-10 • Концевая фреза • Удлиненная • С цилиндрическим хвостовиком • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D | L | L2 | Ap1 макс | Z | Макс. угол подхода | Макс. об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 3744616 | 16A02R025A16ED10-170 | 16 | 16 | 170 | 25 | 10,1 | 2 | 9.50 | 50100 | 0.23 |
| 3744618 | 18A02R028A16ED10-170 | 18 | 16 | 170 | 28 | 10,1 | 2 | 7.50 | 47200 | 0.24 |
| 3744619 | 20A02R032A20ED10-170 | 20 | 20 | 170 | 32 | 10,1 | 2 | 6.00 | 44800 | 0.37 |
| 3744621 | 20A03R032A20ED10-170 | 20 | 20 | 170 | 32 | 10,1 | 3 | 6.00 | 44800 | 0.36 |
| 3744623 | 22A03R032A20ED10-170 | 22 | 20 | 170 | 32 | 10,1 | 3 | 5.00 | 42700 | 0.37 |
| 3744624 | 25A03R040A25ED10-200 | 25 | 25 | 200 | 40 | 10,0 | 3 | 4.00 | 40000 | 0.69 |
| 3744626 | 25A04R040A25ED10-200 | 25 | 25 | 200 | 40 | 10,0 | 4 | 4.00 | 40000 | 0.68 |
| 3744628 | 28A04R040A25ED10-200 | 28 | 25 | 200 | 40 | 10,0 | 4 | 3.25 | 37800 | 0.71 |
| 3744629 | 32A04R048A32ED10-200 | 32 | 32 | 200 | 48 | 10,0 | 4 | 2.75 | 35400 | 1.14 |
| 3744631 | 32A05R048A32ED10-200 | 32 | 32 | 200 | 48 | 10,0 | 5 | 2.75 | 35400 | 1.13 |
Mill 1-10 • Концевая фреза • Удлиненная • С цилиндрическим хвостовиком • Для радиуса закругления 3,1 мм • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D | L | L2 | Ap1 макс | Z | Макс. угол подхода | Макс. об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 3744617 | 16A02R025A16ED10R31-170 | 16 | 16 | 170 | 25 | 9,7 | 2 | 8.00 | 50100 | 0.23 |
| 3744620 | 20A02R032A20ED10R31-170 | 20 | 20 | 170 | 32 | 9,8 | 2 | 4.50 | 44800 | 0.37 |
| 3744622 | 20A03R032A20ED10R31-170 | 20 | 20 | 170 | 32 | 9,8 | 3 | 4.50 | 44800 | 0.36 |
| 3744625 | 25A03R040A25ED10R31-200 | 25 | 25 | 200 | 40 | 9,8 | 3 | 3.00 | 40000 | 0.69 |
| 3744627 | 25A04R040A25ED10R31-200 | 25 | 25 | 200 | 40 | 9,8 | 4 | 3.00 | 40000 | 0.68 |
| 3744632 | 32A05R048A32ED10R31-200 | 32 | 32 | 200 | 48 | 9,7 | 5 | 2.00 | 35400 | 1.13 |
