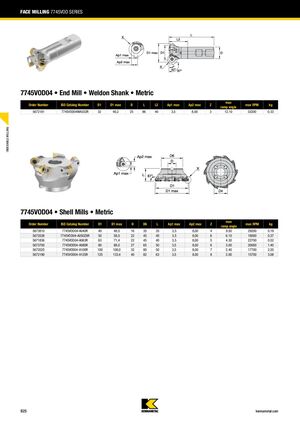

FACE MILLING 7745VOD SERIES 7745VOD04 • End Mill • Weldon Shank • Metric max Order Number ISO Catalog Number D1 D1 max D L L2 Ap1 max Ap2 max Z max RPM kg ramp angle 5672181 7745VOD04WA032R 32 40,2 25 96 40 3,5 8,00 3 12.10 33200 0.33 INDEXABLE MILLING 7745VOD04 • Shell Mills • Metric max Order Number ISO Catalog Number D1 D1 max D D6 L Ap1 max Ap2 max Z max RPM kg ramp angle 5673810 7745VOD04-A040R 40 48,0 16 35 35 3,5 8,00 4 8.50 29200 0.19 5672038 7745VOD04-A050Z6R 50 58,0 22 45 40 3,5 8,00 6 6.10 18000 0.37 5671836 7745VOD04-A063R 63 71,4 22 45 40 3,5 8,00 5 4.30 22700 0.52 5673700 7745VOD04-A080R 80 88,0 27 65 50 3,5 8,00 6 3.00 20000 1.40 5672025 7745VOD04-A100R 100 108,0 32 80 50 3,5 8,00 7 2.40 17700 2.20 5672190 7745VOD04-A125R 125 133,4 40 82 63 3,5 8,00 8 2.00 15700 3.08 B25 kennametal.com
