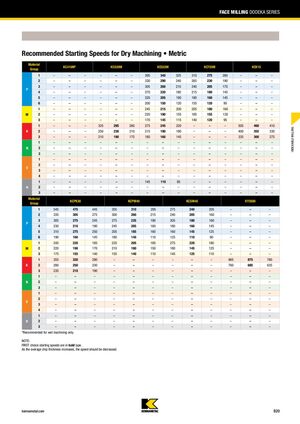

Рекомендуемые начальные скорости резания для сухой обработки • Метрическая система
| Группа материала | KC410M | KC520M | KC522M | KC725M | KCK15 | KCPK30 | KCPM40 | KCSM40 | KY3500 |
|---|---|---|---|---|---|---|---|---|---|
| P | |||||||||
| 1 | — | — | — | — | 395 | 340 | 325 | 310 | 275 |
| 2 | — | — | — | — | 330 | 290 | 240 | 265 | 230 |
| 3 | — | — | — | — | 305 | 260 | 210 | 240 | 205 |
| 4 | — | — | — | — | 270 | 220 | 180 | 215 | 180 |
| 5 | — | — | — | — | 220 | 205 | 180 | 180 | 160 |
| 6 | — | — | — | — | 200 | 150 | 120 | 155 | 120 |
| M | |||||||||
| 1 | — | — | — | — | 245 | 215 | 200 | 205 | 180 |
| 2 | — | — | — | — | 220 | 190 | 155 | 185 | 155 |
| 3 | — | — | — | — | 170 | 145 | 115 | 140 | 120 |
| K | |||||||||
| 1 | — | — | — | 325 | 295 | 260 | 275 | 245 | 220 |
| 2 | — | — | — | 250 | 230 | 210 | 215 | 190 | 180 |
| 3 | — | — | — | 210 | 190 | 175 | 180 | 160 | 145 |
| N | |||||||||
| 1 | — | — | — | — | — | — | — | — | — |
| 2 | — | — | — | — | — | — | — | — | — |
| 3 | — | — | — | — | — | — | — | — | — |
| S | |||||||||
| 1 | — | — | — | — | — | — | — | — | — |
| 2 | — | — | — | — | — | — | — | — | — |
| 3 | — | — | — | — | — | — | — | — | — |
| 4 | — | — | — | — | — | — | — | — | — |
| H | |||||||||
| 1 | — | — | — | — | 145 | 110 | 85 | — | — |
| 2 | — | — | — | — | — | — | — | — | — |
| 3 | — | — | — | — | — | — | — | — | — |
| Группа материала | KCPK30 | KCPM40 | KCSM40 | KY3500 |
|---|---|---|---|---|
| P | ||||
| 1 | 545 | 475 | 445 | 355 |
| 2 | 335 | 305 | 275 | 300 |
| 3 | 305 | 275 | 245 | 275 |
| 4 | 230 | 210 | 190 | 245 |
| 5 | 310 | 275 | 250 | 205 |
| 6 | 190 | 160 | 145 | 180 |
| M | ||||
| 1 | 245 | 220 | 185 | 235 |
| 2 | 220 | 190 | 170 | 210 |
| 3 | 175 | 155 | 140 | 155 |
| K | ||||
| 1 | 355 | 320 | 290 | — |
| 2 | 280 | 250 | 230 | — |
| 3 | 235 | 210 | 190 | — |
| N | ||||
| 1 | — | — | — | — |
| 2 | — | — | — | — |
| 3 | — | — | — | — |
| S | ||||
| 1 | — | — | — | — |
| 2 | — | — | — | — |
| 3 | — | — | — | — |
| 4 | — | — | — | — |
| H | ||||
| 1 | — | — | — | 965 |
| 2 | — | — | — | 760 |
| 3 | — | — | — | — |
Примечание: Скорости первого выбора выделены жирным шрифтом. При увеличении средней толщины стружки скорость должна быть снижена.
