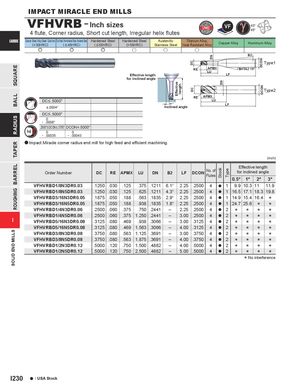

VFHVRB - Inch sizes
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
| e | e | e | u | u | u | ||
| B2 | |||||||
| Type1 |
RE APMX BHTA2 15°
LU Effective length LF for inclined angle Type2
RE APMX
DC .5000" LU
LF ±.0004" Inclined angle DC<.5000" 0
- .0008" .2500" DCON .3750" DCON=.5000" 0 0 - .00035 - .00043 a Impact Miracle corner radius end mill for high feed and efficient machining.
(inch)
| Order Number | DC | RE | APMX | LU | DN | B2 | LF | DCON | No. of Flt | tock | ype | Ef fo | ffectiv r inclin | fe leng ed an | f th gle |
| ues | S | T | 0.5° | 1° | 2° | 3° | |||||||||
| VFHVRBD1/8N3DR0.03 | .1250 | .030 | .125 | .375 | .1211 | 6.1° | 2.25 | .2500 | 4 | a | 1 | 9.9 | 10.3 | 11 | 11.9 |
| VFHVRBD1/8N5DR0.03 | .1250 | .030 | .125 | .625 | .1211 | 4.3° | 2.25 | .2500 | 4 | a | 1 | 16.5 | 17.1 | 18.3 | 19.8 |
| VFHVRBD3/16N3DR0.05 | .1875 | .050 | .188 | .563 | .1835 | 2.9° | 2.25 | .2500 | 4 | a | 1 | 14.9 | 15.4 | 16.4 | |
| VFHVRBD3/16N5DR0.05 | .1875 | .050 | .188 | .938 | .1835 | 1.8° | 2.25 | .2500 | 4 | a | 1 | 24.7 | 25.6 | ||
| VFHVRBD1/4N3DR0.06 | .2500 | .060 | .375 | .750 | .2441 | – | 2.25 | .2500 | 4 | a | 2 | ||||
| VFHVRBD1/4N5DR0.06 | .2500 | .060 | .375 | 1.250 | .2441 | – | 3.00 | .2500 | 4 | a | 2 | ||||
| VFHVRBD5/16N3DR0.08 | .3125 | .080 | .469 | .938 | .3066 | – | 3.00 | .3125 | 4 | a | 2 | ||||
| VFHVRBD5/16N5DR0.08 | .3125 | .080 | .469 | 1.563 | .3066 | – | 4.00 | .3125 | 4 | a | 2 | ||||
| VFHVRBD3/8N3DR0.08 | .3750 | .080 | .563 | 1.125 | .3691 | – | 3.00 | .3750 | 4 | a | 2 | ||||
| VFHVRBD3/8N5DR0.08 | .3750 | .080 | .563 | 1.875 | .3691 | – | 4.00 | .3750 | 4 | a | 2 | ||||
| VFHVRBD1/2N3DR0.12 | .5000 | .120 | .750 | 1.500 | .4882 | – | 4.00 | .5000 | 4 | a | 2 | ||||
| VFHVRBD1/2N5DR0.12 | .5000 | .120 | .750 | 2.500 | .4882 | – | 5.00 | .5000 | 4 | a | 2 |
