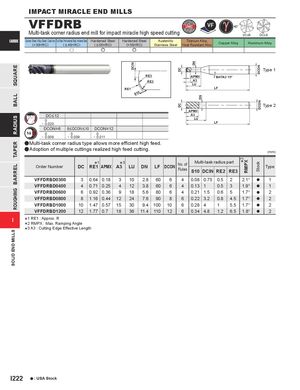

VFFDRB
Multi-task corner radius end mill for impact miracle high speed cutting
DC≤6 DC≥8
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel | Heat Resistant Alloy | Copper Alloy | Aluminum Alloy | |
| u | e | e |
RE3 APMX BHTA2 15°
RE2 A3 LU RE1 LF S10
APMX
| DC | 12 | A3 | |
| 0 | LU | ||
| - 0.020 | LF |
| DCON=6 | 8 | DCON | 10 | DCON=12 |
| 0 | 0 | 0 | ||
| - 0.008 | - 0.009 | - 0.011 |
a Multi-task corner radius type allows more efficient high feed. a Adoption of multiple cuttings realized high feed cutting.
Type 1
Type 2
(mm)
| Order Number | DC | RE1 1 | APMX | A3 3 | LU | DN | LF | DCON | No. of Flutes | S10 Mul | DCIN ti-task | RE2 radius | RE3 part | RMPX 2 | Stock | Type |
| VFFDRBD0300 | 3 | 0.64 | 0.18 | 3 | 10 | 2.8 | 60 | 6 | 4 | 0.08 | 0.75 | 0.5 | 2 | 2.1° | a | 1 |
| VFFDRBD0400 | 4 | 0.71 | 0.25 | 4 | 12 | 3.8 | 60 | 6 | 4 | 0.13 | 1 | 0.5 | 3 | 1.9° | a | 1 |
| VFFDRBD0600 | 6 | 0.92 | 0.36 | 9 | 18 | 5.6 | 80 | 6 | 4 | 0.21 | 1.5 | 0.6 | 5 | 1.7° | a | 2 |
| VFFDRBD0800 | 8 | 1.16 | 0.44 | 12 | 24 | 7.6 | 90 | 8 | 6 | 0.22 | 3.2 | 0.8 | 4.5 | 1.7° | a | 2 |
| VFFDRBD1000 | 10 | 1.47 | 0.57 | 15 | 30 | 9.4 | 100 | 10 | 6 | 0.28 | 4 | 1 | 5.5 | 1.7° | a | 2 |
| VFFDRBD1200 | 12 | 1.77 | 0.7 | 18 | 36 | 11.4 | 110 | 12 | 6 | 0.34 | 4.8 | 1.2 | 6.5 | 1.8° | a | 2 |
