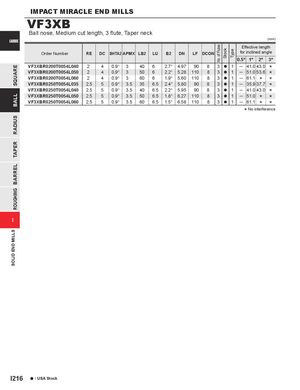

| Order Number | RE | DC | BHTA2 | APMX | LB2 | LU | B2 | DN | LF | DCON | of Flutes | tk | oc | e | Eff for yp | fectiv inclin | fe leng ed an | (mm) f th gle |
| No. | 0.5° | 1° | 2° | 3° | ||||||||||||||
| VF3XBR0200T0054L040 | 2 | 4 | 0.9° | 3 | 40 | 6 | 2.7° | 4.97 | 90 | 8 | 3 | a | 1 | ─ | 41.0 | 43.0 | ||
| VF3XBR0200T0054L050 | 2 | 4 | 0.9° | 3 | 50 | 6 | 2.2° | 5.28 | 110 | 8 | 3 | a | 1 | ─ | 51.0 | 53.6 | ||
| VF3XBR0200T0054L060 | 2 | 4 | 0.9° | 3 | 60 | 6 | 1.9° | 5.60 | 110 | 8 | 3 | a | 1 | ─ | 61.1 | |||
| VF3XBR0250T0054L035 | 2.5 | 5 | 0.9° | 3.5 | 35 | 6.5 | 2.4° | 5.80 | 90 | 8 | 3 | a | 1 | ─ | 35.9 | 37.7 | ||
| VF3XBR0250T0054L040 | 2.5 | 5 | 0.9° | 3.5 | 40 | 6.5 | 2.2° | 5.95 | 90 | 8 | 3 | a | 1 | ─ | 41.0 | 43.0 | ||
| VF3XBR0250T0054L050 | 2.5 | 5 | 0.9° | 3.5 | 50 | 6.5 | 1.8° | 6.27 | 110 | 8 | 3 | a | 1 | ─ | 51.0 | |||
| VF3XBR0250T0054L060 | 2.5 | 5 | 0.9° | 3.5 | 60 | 6.5 | 1.5° | 6.58 | 110 | 8 | 3 | a | 1 | ─ | 61.1 |
