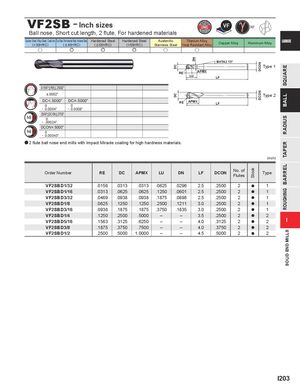

VF2SB - Inch sizes
Ball nose, Short cut length, 2 flute, For hardened materials
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, CARBIDE
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
u e e e u u
BHTA2 15° Type 1 RE APMX LU LF
.0156"≤RE≤.2500" ±.0002" Type 2
DC<.5000" DC=.5000" APMX
RE LF 0 0 - 0.0004" - 0.0008" .2500"≤DCON≤.3750"
0 - .00024" DCON=.5000" 0 - 0.00043" a 2 flute ball nose end mills with Impact Miracle coating for high hardness materials.
(inch)
| Order Number | RE | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| VF2SB D1/32 | .0156 | .0313 | .0313 | .0625 | .0296 | 2.5 | .2500 | 2 | a | 1 |
| VF2SB D1/16 | .0313 | .0625 | .0625 | .1250 | .0601 | 2.5 | .2500 | 2 | a | 1 |
| VF2SB D3/32 | .0469 | .0938 | .0938 | .1875 | .0898 | 2.5 | .2500 | 2 | a | 1 |
| VF2SB D1/8 | .0625 | .1250 | .1250 | .2500 | .1211 | 3.0 | .2500 | 2 | a | 1 |
| VF2SB D3/16 | .0938 | .1875 | .1875 | .3750 | .1835 | 3.0 | .2500 | 2 | a | 1 |
| VF2SB D1/4 | .1250 | .2500 | .5000 | – | – | 3.5 | .2500 | 2 | a | 2 |
| VF2SB D5/16 | .1563 | .3125 | .6250 | – | – | 4.0 | .3125 | 2 | a | 2 |
| VF2SB D3/8 | .1875 | .3750 | .7500 | – | – | 4.0 | .3750 | 2 | a | 2 |
| VF2SB D1/2 | .2500 | .5000 | 1.0000 | – | – | 4.5 | .5000 | 2 | a | 2 |
