CARBIDE

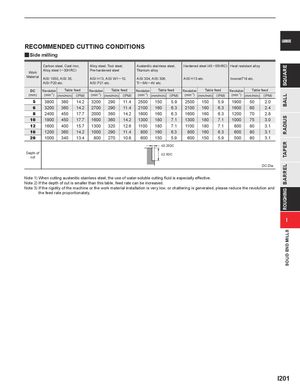

RECOMMENDED CUTTING CONDITIONS
ySide milling
| Work Material | Carbon s Alloy ste AISI 105 AISI P20 | teel, Cast i el(─30HRC 0, AISI 35, etc. | ron, ) | Alloy stee Pre-hard AISI H13 AISI P21 | l, Tool ste ened steel , AISI W1─ etc. | el, 10, | Austenitic Titanium AISI 304, Ti─6Al─ | stainless alloy AISI 306, 4V etc. | steel, | Hardene AISI H13 | d steel(45─ etc. | 55HRC) | Heat resi Inconel7 | stant alloy 18 etc. | |
| DC | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 5 | 3800 | 360 | 14.2 | 3200 | 290 | 11.4 | 2500 | 150 | 5.9 | 2500 | 150 | 5.9 | 1900 | 50 | 2.0 |
| 6 | 3200 | 360 | 14.2 | 2700 | 290 | 11.4 | 2100 | 160 | 6.3 | 2100 | 160 | 6.3 | 1600 | 60 | 2.4 |
| 8 | 2400 | 450 | 17.7 | 2000 | 360 | 14.2 | 1600 | 160 | 6.3 | 1600 | 160 | 6.3 | 1200 | 70 | 2.8 |
| 10 | 1900 | 450 | 17.7 | 1600 | 360 | 14.2 | 1300 | 180 | 7.1 | 1300 | 180 | 7.1 | 1000 | 75 | 3.0 |
| 12 | 1600 | 400 | 15.7 | 1300 | 320 | 12.6 | 1100 | 180 | 7.1 | 1100 | 180 | 7.1 | 800 | 80 | 3.1 |
| 16 | 1200 | 360 | 14.2 | 1000 | 290 | 11.4 | 800 | 160 | 6.3 | 800 | 160 | 6.3 | 600 | 80 | 3.1 |
| 20 | 1000 | 340 | 13.4 | 800 | 270 | 10.6 | 600 | 150 | 5.9 | 600 | 150 | 5.9 | 500 | 80 | 3.1 |
| Depth of cut | 5DC DC |
DC:Dia. Note 1) When cutting austenitic stainless steel, the use of water-soluble cutting fluid is especially effective. Note 2) If the depth of cut is smaller than this table, feed rate can be increased. Note 3) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
