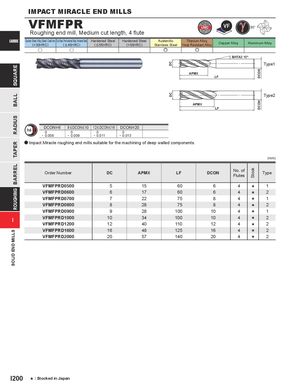

VFMFPR
Roughing end mill, Medium cut length, 4 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
u u e e
BHTA2 15° Type1 APMX LF
Type2 APMX LF
| DCON=6 | 8 | DCON | 10 12 | DCON | 16 | DCON=20 | |
| 0 | 0 | 0 | 0 | ||||
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a Impact Miracle roughing end mills suitable for the machining of deep walled components.
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VFMFPRD0500 | 5 | 15 | 60 | 6 | 4 | s | 1 |
| VFMFPRD0600 | 6 | 17 | 60 | 6 | 4 | s | 2 |
| VFMFPRD0700 | 7 | 22 | 75 | 8 | 4 | s | 1 |
| VFMFPRD0800 | 8 | 28 | 75 | 8 | 4 | s | 2 |
| VFMFPRD0900 | 9 | 28 | 100 | 10 | 4 | s | 1 |
| VFMFPRD1000 | 10 | 34 | 100 | 10 | 4 | s | 2 |
| VFMFPRD1200 | 12 | 40 | 110 | 12 | 4 | s | 2 |
| VFMFPRD1600 | 16 | 48 | 125 | 16 | 4 | s | 2 |
| VFMFPRD2000 | 20 | 57 | 140 | 20 | 4 | s | 2 |
