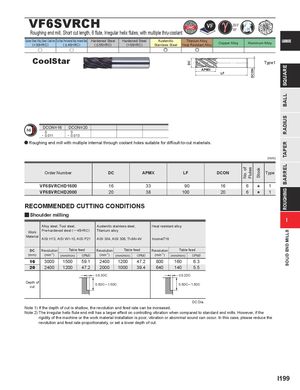

Общий каталог Mitsubishi 2020 - 2021 - страница 958
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
VF6SVRCH
Roughing end mill, Short cut length, 6 flute, Irregular helix flutes, with multiple thru-coolant 30°
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, CARBIDE
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
u u e e
CoolStar Type1 APMX LF
DCON=16 DCON=20
0 0 - 0.011 - 0.013 a Roughing end mill with multiple internal through coolant holes suitable for difficult-to-cut materials.
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VF6SVRCHD1600 | 16 | 33 | 90 | 16 | 6 | s | 1 |
| VF6SVRCHD2000 | 20 | 38 | 100 | 20 | 6 | s | 1 |
RECOMMENDED CUTTING CONDITIONS
y Shoulder milling
I
| Alloy steel, Tool steel, | Austenitic stainless steel, | Heat resistant alloy | ||||||||
| Work | Pre-hardened steel (─ 45HRC) | Titanium alloy | ||||||||
| Material | ||||||||||
| AISI H13, AISI W1-10, AISI P21 | AISI 304, AISI 306, Ti-6Al-4V | Inconel718 | ||||||||
| DC | Revolution | Table feed | Revolution | Table feed | Revolution | Table feed | ||||
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min -1) | (mm/min) | (IPM) | |
| 16 | 3000 | 1500 | 59.1 | 2400 | 1200 | 47.2 | 800 | 160 | 6.3 | |
| 20 | 2400 | 1200 | 47.2 | 2000 | 1000 | 39.4 | 640 | 140 | 5.5 | |
| <0.3DC | <0.2DC | |||||||||
| Depth of | ||||||||||
| cut | 0.5DC─1.5DC | 0.5DC─1.5DC |
DC:Dia. Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 2) The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the work material installation is poor, vibration or abonrmal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut.
