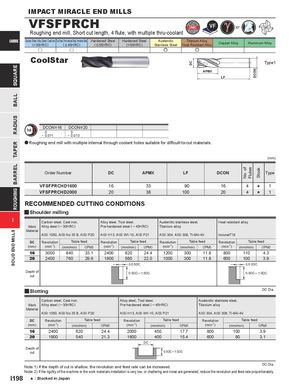

VFSFPRCH
Roughing end mill, Short cut length, 4 flute, with multiple thru-coolant
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy
u u e e
CoolStar APMX
Copper Alloy Aluminum Alloy
Type1
LF
DCON=16 DCON=20
0 0 - 0.011 - 0.013 a Roughing end mill with multiple internal through coolant holes suitable for difficult-to-cut materials.
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VFSFPRCHD1600 | 16 | 33 | 90 | 16 | 4 | s | 1 |
| VFSFPRCHD2000 | 20 | 38 | 100 | 20 | 4 | s | 1 |
RECOMMENDED CUTTING CONDITIONS
yShoulder milling
I
| Work Material | Carbon stee Alloy steel ( AISI 1050, A | l, Cast iron, ─30HRC) ISI No 35 B, | AISI P20 | Alloy steel, Pre-hardene AISI H13, A | Tool steel, d steel (─45 ISI W1-10, AI | HRC) SI P21 | Austenitic s Titanium all AISI 304, AI | tainless steel, oy SI 306, Ti-6A | l-4V | Heat resista Inconel718 | nt alloy | |
| DC | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 16 | 3000 | 840 | 33.1 | 2400 | 620 | 24.4 | 1200 | 300 | 11.8 | 800 | 110 | 4.3 |
| 20 | 2400 | 760 | 29.9 | 1900 | 560 | 22.0 | 1000 | 300 | 11.8 | 600 | 100 | 3.9 |
| Depth of cut | 0.5DC | ─1.5DC C | 0.5DC─ | 1.0DC |
| y Slot | ting | DC:Dia. | |||||||
| Work Material | Carbon steel, Ca Alloy steel (─30 AISI 1050, AISI N | st iron, HRC) o 35 B, AISI P20 | Alloy steel, Tool Pre-hardened st AISI H13, AISI W | steel, eel (─45HRC) 1-10, AISI P21 | Austenitic stainle Titanium alloy AISI 304, AISI 30 | ss steel, 6, Ti-6Al-4V | |||
| DC | Revolution | Table f | eed | Revolution | Table fe | ed | Revolution | Table | feed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 16 | 2400 | 620 | 24.4 | 2000 | 450 | 17.7 | 800 | 100 | 3.9 |
| 20 | 1900 | 540 | 21.3 | 1600 | 400 | 15.4 | 600 | 80 | 3.1 |
| Depth of cut | D | 0.5DC─ C | 1.0DC |
Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased. DC:Dia. Note 2) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately.
