CARBIDE

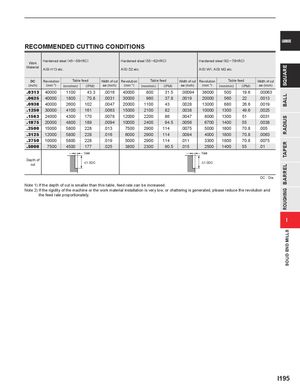

RECOMMENDED CUTTING CONDITIONS
| Work Material | Hardened st AISI H13 et | eel(45─55 c. | HRC) | Hardened st AISI D2 etc. | eel(55─62H | RC) | Hardened s AISI W1, AI | teel(62─70H SI M2 etc. | RC) | |||
| DC | Revolution | Tabl | e feed | Width of cut | Revolution | Table | feed | Width of cut | Revolution | Table | feed | Width of cut |
| (inch) | (min-1) | (mm/min) | (IPM) | ae (inch) | (min-1) | (mm/min) | (IPM) | ae (inch) | (min-1) | (mm/min) | (IPM) | ae (inch) |
| .0313 | 40000 | 1100 | 43.3 | .0016 | 40000 | 800 | 31.5 | .00094 | 36000 | 500 | 19.6 | .00063 |
| .0625 | 40000 | 1800 | 70.8 | .0031 | 30000 | 960 | 37.8 | .0019 | 20000 | 560 | 22 | .0013 |
| .0938 | 40000 | 2600 | 102 | .0047 | 20000 | 1100 | 43 | .0028 | 13000 | 680 | 26.6 | .0019 |
| .1250 | 30000 | 4100 | 161 | .0063 | 15000 | 2100 | 82 | .0038 | 10000 | 1300 | 49.6 | .0025 |
| .1563 | 24000 | 4300 | 170 | .0078 | 12000 | 2200 | 86 | .0047 | 8000 | 1300 | 51 | .0031 |
| .1875 | 20000 | 4800 | 189 | .0094 | 10000 | 2400 | 94.5 | .0056 | 6700 | 1400 | 55 | .0038 |
| .2500 | 15000 | 5800 | 228 | .013 | 7500 | 2900 | 114 | .0075 | 5000 | 1800 | 70.8 | .005 |
| .3125 | 12000 | 5800 | 228 | .016 | 6000 | 2900 | 114 | .0094 | 4000 | 1800 | 70.8 | .0063 |
| .3750 | 10000 | 5800 | 228 | .019 | 5000 | 2900 | 114 | .011 | 3300 | 1800 | 70.8 | .0075 |
| .5000 | 7500 | 4500 | 177 | .025 | 3800 | 2300 | 90.5 | .015 | 2500 | 1400 | 55 | .01 |
| Depth of cut |
DC : Dia. Note 1) If the depth of cut is smaller than this table, feed rate can be increased. Note 2) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
