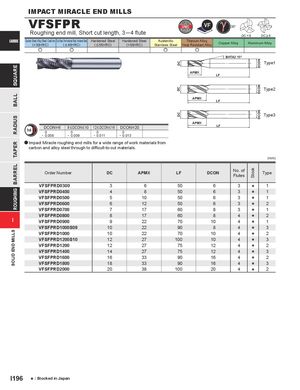

VFSFPR
Roughing end mill, Short cut length, 3─4 flute
| CARBIDE | Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel | Hardened Steel | Hardened Steel | Austenitic | ||||
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel |
e e e
| DCON=6 | 8 | DCON | 10 12 | DCON | 16 | DCON=20 | |
| 0 | 0 | 0 | 0 | ||||
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a Impact Miracle roughing end mills for a wide range of work materials from carbon and alloy steel through to difficult-to-cut materials.
DC<8 DC≥ 8 Titanium Alloy,
Heat Resistant Alloy Copper Alloy Aluminum Alloy
e BHTA2 15° Type1 APMX
LF Type2 APMX LF Type3 APMX LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VFSFPRD0300 | 3 | 6 | 50 | 6 | 3 | s | 1 |
| VFSFPRD0400 | 4 | 8 | 50 | 6 | 3 | s | 1 |
| VFSFPRD0500 | 5 | 10 | 50 | 6 | 3 | s | 1 |
| VFSFPRD0600 | 6 | 12 | 50 | 6 | 3 | s | 2 |
| VFSFPRD0700 | 7 | 17 | 60 | 8 | 3 | s | 1 |
| VFSFPRD0800 | 8 | 17 | 60 | 8 | 4 | s | 2 |
| VFSFPRD0900 | 9 | 22 | 70 | 10 | 4 | s | 1 |
| VFSFPRD1000S08 | 10 | 22 | 90 | 8 | 4 | s | 3 |
| VFSFPRD1000 | 10 | 22 | 70 | 10 | 4 | s | 2 |
| VFSFPRD1200S10 | 12 | 27 | 100 | 10 | 4 | s | 3 |
| VFSFPRD1200 | 12 | 27 | 75 | 12 | 4 | s | 2 |
| VFSFPRD1400 | 14 | 27 | 75 | 12 | 4 | s | 3 |
| VFSFPRD1600 | 16 | 33 | 90 | 16 | 4 | s | 2 |
| VFSFPRD1800 | 18 | 33 | 90 | 16 | 4 | s | 3 |
| VFSFPRD2000 | 20 | 38 | 100 | 20 | 4 | s | 2 |
