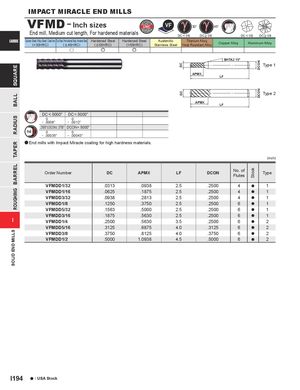

VFMD - Inch sizes
End mill, Medium cut length, For hardened materials
DC<1/8 DC≥ 1/8
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel | Heat Resistant Alloy | |
| u | e | e |
APMX
APMX
| DC<.5000" | DC=.5000" |
| 0 | 0 |
| - .0008" | - .0012" |
| .2500"<DCON<.3750" DCON=.5000" | |
| 0 | 0 |
| - .00035" | - .00043" |
a End mills with Impact Miracle coating for high hardness materials.
DC<1/8 DC≥1/8 Copper Alloy Aluminum Alloy
BHTA2 15° Type 1 LF
Type 2 LF
(inch)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VFMDD1/32 | .0313 | .0938 | 2.5 | .2500 | 4 | a | 1 |
| VFMDD1/16 | .0625 | .1875 | 2.5 | .2500 | 4 | a | 1 |
| VFMDD3/32 | .0938 | .2813 | 2.5 | .2500 | 4 | a | 1 |
| VFMDD1/8 | .1250 | .3750 | 2.5 | .2500 | 6 | a | 1 |
| VFMDD5/32 | .1563 | .5000 | 2.5 | .2500 | 6 | a | 1 |
| VFMDD3/16 | .1875 | .5630 | 2.5 | .2500 | 6 | a | 1 |
| VFMDD1/4 | .2500 | .5630 | 3.5 | .2500 | 6 | a | 2 |
| VFMDD5/16 | .3125 | .6875 | 4.0 | .3125 | 6 | a | 2 |
| VFMDD3/8 | .3750 | .8125 | 4.0 | .3750 | 6 | a | 2 |
| VFMDD1/2 | .5000 | 1.0938 | 4.5 | .5000 | 6 | a | 2 |
