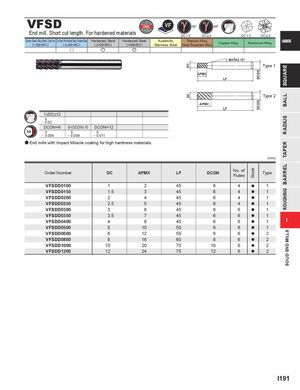

VFSD
End mill, Short cut length, For hardened materials
DC<3 DC≥ 3
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel | Heat Resistant Alloy | |
| u | e | e |
APMX
APMX 1≤DC≤12 0 - 0.02
| DCON=6 | 8 | DCON | 10 | DCON=12 |
| 0 | 0 | 0 | ||
| - 0.008 | - 0.009 | - 0.011 |
a End mills with Impact Miracle coating for high hardness materials.
DC<3 DC≥ 3 CARBIDE Copper Alloy Aluminum Alloy
BHTA2 15° Type 1 LF
Type 2 LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VFSDD0100 | 1 | 2 | 45 | 6 | 4 | a | 1 |
| VFSDD0150 | 1.5 | 3 | 45 | 6 | 4 | a | 1 |
| VFSDD0200 | 2 | 4 | 45 | 6 | 4 | a | 1 |
| VFSDD0250 | 2.5 | 5 | 45 | 6 | 4 | a | 1 |
| VFSDD0300 | 3 | 6 | 45 | 6 | 6 | a | 1 |
| VFSDD0350 | 3.5 | 7 | 45 | 6 | 6 | a | 1 |
| VFSDD0400 | 4 | 8 | 45 | 6 | 6 | a | 1 |
| VFSDD0500 | 5 | 10 | 50 | 6 | 6 | a | 1 |
| VFSDD0600 | 6 | 12 | 50 | 6 | 6 | a | 2 |
| VFSDD0800 | 8 | 16 | 60 | 8 | 6 | a | 2 |
| VFSDD1000 | 10 | 20 | 70 | 10 | 6 | a | 2 |
| VFSDD1200 | 12 | 24 | 75 | 12 | 6 | a | 2 |
