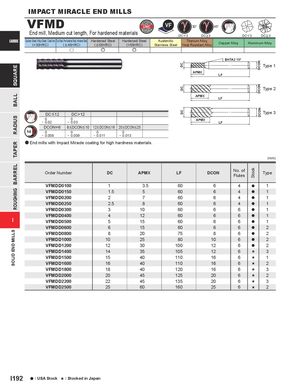

VFMD
End mill, Medium cut length, For hardened materials
DC<3 DC≥ 3
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel | Heat Resistant Alloy | |
| u | e | e |
APMX
APMX
| DC | 12 | DC >12 | |
| 0 | 0 | APMX | |
| - 0.02 | - 0.03 |
| DCON=6 | 8 | DCON | 10 12 | DCON | 16 20 | DCON | 25 | ||
| 0 | 0 | 0 | 0 | ||||||
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a End mills with Impact Miracle coating for high hardness materials.
DC<3 DC≥ 3 Copper Alloy Aluminum Alloy
BHTA2 15° Type 1 LF Type 2 LF Type 3 LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VFMDD0100 | 1 | 3.5 | 60 | 6 | 4 | a | 1 |
| VFMDD0150 | 1.5 | 5 | 60 | 6 | 4 | a | 1 |
| VFMDD0200 | 2 | 7 | 60 | 6 | 4 | a | 1 |
| VFMDD0250 | 2.5 | 8 | 60 | 6 | 4 | a | 1 |
| VFMDD0300 | 3 | 10 | 60 | 6 | 6 | a | 1 |
| VFMDD0400 | 4 | 12 | 60 | 6 | 6 | a | 1 |
| VFMDD0500 | 5 | 15 | 60 | 6 | 6 | a | 1 |
| VFMDD0600 | 6 | 15 | 60 | 6 | 6 | a | 2 |
| VFMDD0800 | 8 | 20 | 75 | 8 | 6 | a | 2 |
| VFMDD1000 | 10 | 25 | 80 | 10 | 6 | a | 2 |
| VFMDD1200 | 12 | 30 | 100 | 12 | 6 | a | 2 |
| VFMDD1400 | 14 | 35 | 105 | 12 | 6 | s | 3 |
| VFMDD1500 | 15 | 40 | 110 | 16 | 6 | s | 1 |
| VFMDD1600 | 16 | 40 | 110 | 16 | 6 | s | 2 |
| VFMDD1800 | 18 | 40 | 120 | 16 | 6 | s | 3 |
| VFMDD2000 | 20 | 45 | 125 | 20 | 6 | s | 2 |
| VFMDD2200 | 22 | 45 | 135 | 20 | 6 | s | 3 |
| VFMDD2500 | 25 | 60 | 160 | 25 | 6 | s | 2 |
