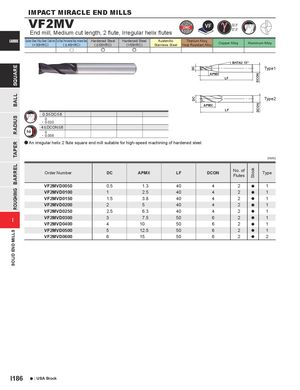

VF2MV
End mill, Medium cut length, 2 flute, Irregular helix flutes 37.5°
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel | Heat Resistant Alloy | Copper Alloy | Aluminum Alloy | |
| u | e | e |
BHTA2 15° Type1 APMX LF
APMX 0.5<DC<6 0 - 0.020 4<DCON<6 0 - 0.008 a An irregular helix 2 flute square end mill suitable for high-speed machining of hardened steel.
LF
Type2
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VF2MVD0050 | 0.5 | 1.3 | 40 | 4 | 2 | a | 1 |
| VF2MVD0100 | 1 | 2.5 | 40 | 4 | 2 | a | 1 |
| VF2MVD0150 | 1.5 | 3.8 | 40 | 4 | 2 | a | 1 |
| VF2MVD0200 | 2 | 5 | 40 | 4 | 2 | a | 1 |
| VF2MVD0250 | 2.5 | 6.3 | 40 | 4 | 2 | a | 1 |
| VF2MVD0300 | 3 | 7.5 | 50 | 6 | 2 | a | 1 |
| VF2MVD0400 | 4 | 10 | 50 | 6 | 2 | a | 1 |
| VF2MVD0500 | 5 | 12.5 | 50 | 6 | 2 | a | 1 |
| VF2MVD0600 | 6 | 15 | 50 | 6 | 2 | a | 2 |
