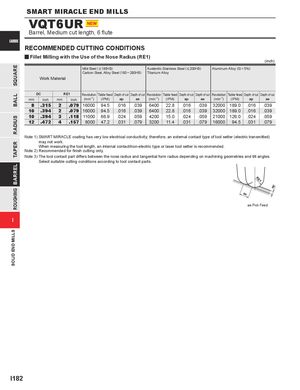

SQUAREBALLRADIUSTAPERBARRELROUGHINGSOLID END MILLS ap RE1 SMART MIRACLE END MILLS VQT6UR Barrel, Medium cut length, 6 flute CARBIDE RECOMMENDED CUTTING CONDITIONS y Fillet Milling with the Use of the Nose Radius (RE1) (inch) Mild Steel (<180HB) Austenitic Stainless Steel (<200HB) Aluminum Alloy (Si ˂ 5%) Carbon Steel, Alloy Steel (180 ─ 280HB) Titanium Alloy Work Material DC RE1 Revolution Table feed Depth of cut Depth of cut Revolution Table feed Depth of cut Depth of cut Revolution Table feed Depth of cut Depth of cut mm inch mm inch (min-1) (IPM) ap ae (min-1) (IPM) ap ae (min-1) (IPM) ap ae 8 .315 2 .079 16000 94.5 .016 .039 6400 22.8 .016 .039 32000 189.0 .016 .039 10 .394 2 .079 16000 94.5 .016 .039 6400 22.8 .016 .039 32000 189.0 .016 .039 10 .394 3 .118 11000 66.9 .024 .059 4200 15.0 .024 .059 21000 126.0 .024 .059 12 .472 4 .157 8000 47.2 .031 .079 3200 11.4 .031 .079 16000 94.5 .031 .079 Note 1) SMART MIRACLE coating has very low electrical conductivity; therefore, an external contact type of tool setter (electric transmitted) may not work. When measuring the tool length, an internal contact/non-electric type or laser tool setter is recommended. Note 2) Recommended for finish cutting only. Note 3) The tool contact part differs between the nose radius and tangential form radius depending on machining geometries and tilt angles. Select suitable cutting conditions according to tool contact parts. ae ae:Pick Feed I I182
