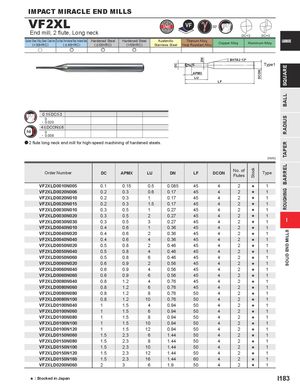

VF2XL
End mill, 2 flute, Long neck
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | ||
| u | e | e | e |
Austenitic Stainless Steel
Titanium Alloy, Heat Resistant Alloy
APMX LU
DC<3 DC=3 CARBIDE Copper Alloy Aluminum Alloy
BHTA2 12° Type1
LF
0.1< DC<3 0 - 0.020 4<DCON<6 0 - 0.008 a 2 flute long neck end mill for high-speed machining of hardened steels.
(mm)
| Order Number | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| VF2XLD0010N005 | 0.1 | 0.15 | 0.5 | 0.085 | 45 | 4 | 2 | s | 1 |
| VF2XLD0020N006 | 0.2 | 0.3 | 0.6 | 0.17 | 45 | 4 | 2 | s | 1 |
| VF2XLD0020N010 | 0.2 | 0.3 | 1 | 0.17 | 45 | 4 | 2 | s | 1 |
| VF2XLD0020N015 | 0.2 | 0.3 | 1.5 | 0.17 | 45 | 4 | 2 | s | 1 |
| VF2XLD0030N010 | 0.3 | 0.5 | 1 | 0.27 | 45 | 4 | 2 | s | 1 |
| VF2XLD0030N020 | 0.3 | 0.5 | 2 | 0.27 | 45 | 4 | 2 | s | 1 |
| VF2XLD0030N030 | 0.3 | 0.5 | 3 | 0.27 | 45 | 4 | 2 | s | 1 |
| VF2XLD0040N010 | 0.4 | 0.6 | 1 | 0.36 | 45 | 4 | 2 | s | 1 |
| VF2XLD0040N020 | 0.4 | 0.6 | 2 | 0.36 | 45 | 4 | 2 | s | 1 |
| VF2XLD0040N040 | 0.4 | 0.6 | 4 | 0.36 | 45 | 4 | 2 | s | 1 |
| VF2XLD0050N020 | 0.5 | 0.8 | 2 | 0.46 | 45 | 4 | 2 | s | 1 |
| VF2XLD0050N040 | 0.5 | 0.8 | 4 | 0.46 | 45 | 4 | 2 | s | 1 |
| VF2XLD0050N060 | 0.5 | 0.8 | 6 | 0.46 | 45 | 4 | 2 | s | 1 |
| VF2XLD0060N020 | 0.6 | 0.9 | 2 | 0.56 | 45 | 4 | 2 | s | 1 |
| VF2XLD0060N040 | 0.6 | 0.9 | 4 | 0.56 | 45 | 4 | 2 | s | 1 |
| VF2XLD0060N060 | 0.6 | 0.9 | 6 | 0.56 | 45 | 4 | 2 | s | 1 |
| VF2XLD0080N040 | 0.8 | 1.2 | 4 | 0.76 | 45 | 4 | 2 | s | 1 |
| VF2XLD0080N060 | 0.8 | 1.2 | 6 | 0.76 | 45 | 4 | 2 | s | 1 |
| VF2XLD0080N080 | 0.8 | 1.2 | 8 | 0.76 | 50 | 4 | 2 | s | 1 |
| VF2XLD0080N100 | 0.8 | 1.2 | 10 | 0.76 | 50 | 4 | 2 | s | 1 |
| VF2XLD0100N040 | 1 | 1.5 | 4 | 0.94 | 50 | 4 | 2 | s | 1 |
| VF2XLD0100N060 | 1 | 1.5 | 6 | 0.94 | 50 | 4 | 2 | s | 1 |
| VF2XLD0100N080 | 1 | 1.5 | 8 | 0.94 | 50 | 4 | 2 | s | 1 |
| VF2XLD0100N100 | 1 | 1.5 | 10 | 0.94 | 50 | 4 | 2 | s | 1 |
| VF2XLD0100N120 | 1 | 1.5 | 12 | 0.94 | 50 | 4 | 2 | s | 1 |
| VF2XLD0150N060 | 1.5 | 2.3 | 6 | 1.44 | 50 | 4 | 2 | s | 1 |
| VF2XLD0150N080 | 1.5 | 2.3 | 8 | 1.44 | 50 | 4 | 2 | s | 1 |
| VF2XLD0150N100 | 1.5 | 2.3 | 10 | 1.44 | 50 | 4 | 2 | s | 1 |
| VF2XLD0150N120 | 1.5 | 2.3 | 12 | 1.44 | 50 | 4 | 2 | s | 1 |
| VF2XLD0150N160 | 1.5 | 2.3 | 16 | 1.44 | 60 | 4 | 2 | s | 1 |
| VF2XLD0200N060 | 2 | 3 | 6 | 1.9 | 50 | 4 | 2 | s | 1 |
