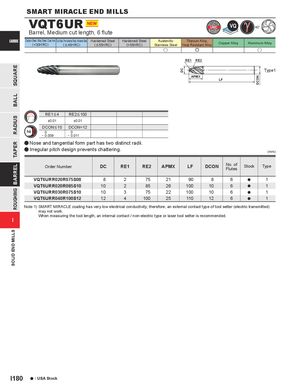

SMART MIRACLE END MILLS VQT6UR 40° Barrel, Medium cut length, 6 flute CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, Copper Alloy Aluminum Alloy (<30HRC) ( < 45HRC) ( < 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy u e u RE1 RE2 SQUARE Type1 DC APMX DCON LF BALL RE1 < 4 RE2 < 100 RADIUS ±0.01 ±0.01 DCON < 10 DCON=12 0 0 - 0.009 - 0.011 a Nose and tangential form part has two distinct radii. TAPER a Irregular pitch design prevents chattering. (mm) No. of Order Number DC RE1 RE2 APMX LF DCON Stock Type ROUGHING BARREL Flutes VQT6URR020R075S08 8 2 75 21 90 8 6 a 1 VQT6URR020R085S10 10 2 85 26 100 10 6 a 1 VQT6URR030R075S10 10 3 75 22 100 10 6 a 1 VQT6URR040R100S12 12 4 100 25 110 12 6 a 1 Note 1) SMART MIRACLE coating has very low electrical conductivity; therefore, an external contact type of tool setter (electric transmitted) may not work. When measuring the tool length, an internal contact / non-electric type or laser tool setter is recommended. I SOLID END MILLS I180 a : USA Stock
