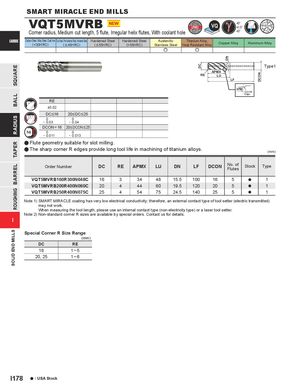

VQT5MVRB
Corner radius, Medium cut length, 5 flute, Irregular helix flutes, With coolant hole 43°
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e
Type1 APMX RE LU LF APMX Curved Edge RE ±0.02
| DC<16 | 20<DC<25 |
| 0 | 0 |
| - 0.03 | - 0.04 |
| DCON=16 20<DCON<25 | |
| 0 | 0 |
| - 0.011 | - 0.013 |
a Flute geometry suitable for slot milling. a The sharp corner R edges provide long tool life in machining of titanium alloys. (mm)
| Order Number | DC | RE | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| VQT5MVRB160R300N048C | 16 | 3 | 34 | 48 | 15.5 | 100 | 16 | 5 | a | 1 |
| VQT5MVRB200R400N060C | 20 | 4 | 44 | 60 | 19.5 | 120 | 20 | 5 | a | 1 |
| VQT5MVRB250R400N075C | 25 | 4 | 54 | 75 | 24.5 | 140 | 25 | 5 | a | 1 |
Note 1) SMART MIRACLE coating has very low electrical conductivity; therefore, an external contact type of tool setter (electric transmitted) may not work. When measuring the tool length, please use an internal contact type (non-electricity type) or a laser tool setter. Note 2) Non-standard corner R sizes are available by special orders. Contact us for details.
I
Special Corner R Size Range
| (mm) | |
| DC | RE |
| 16 | 1‒5 |
| 20,25 | 1‒6 |
