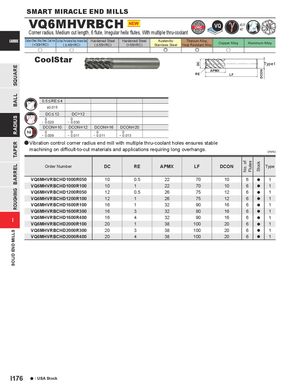

Общий каталог Mitsubishi 2020 - 2021 - страница 935
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
VQ6MHVRBCH
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
u u e e u
CoolStar Type1 APMX RE LF
0.5< RE<4 ±0.015
| DC | 12 DC>12 | ||
| 0 | 0 | ||
| - 0.020 | - 0.030 | ||
| DCON=10 | DCON=12 | DCON=16 | DCON=20 |
| 0 | 0 | 0 | 0 |
| - 0.009 | - 0.011 | - 0.011 | - 0.013 |
a Vibration control corner radius end mill with multiple thru-coolant holes ensures stable machining on difficult-to-cut materials and applications requiring long overhangs. (mm)
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQ6MHVRBCHD1000R050 | 10 | 0.5 | 22 | 70 | 10 | 6 | a | 1 |
| VQ6MHVRBCHD1000R100 | 10 | 1 | 22 | 70 | 10 | 6 | a | 1 |
| VQ6MHVRBCHD1200R050 | 12 | 0.5 | 26 | 75 | 12 | 6 | a | 1 |
| VQ6MHVRBCHD1200R100 | 12 | 1 | 26 | 75 | 12 | 6 | a | 1 |
| VQ6MHVRBCHD1600R100 | 16 | 1 | 32 | 90 | 16 | 6 | a | 1 |
| VQ6MHVRBCHD1600R300 | 16 | 3 | 32 | 90 | 16 | 6 | a | 1 |
| VQ6MHVRBCHD1600R400 | 16 | 4 | 32 | 90 | 16 | 6 | a | 1 |
| VQ6MHVRBCHD2000R100 | 20 | 1 | 38 | 100 | 20 | 6 | a | 1 |
| VQ6MHVRBCHD2000R300 | 20 | 3 | 38 | 100 | 20 | 6 | a | 1 |
| VQ6MHVRBCHD2000R400 | 20 | 4 | 38 | 100 | 20 | 6 | a | 1 |
