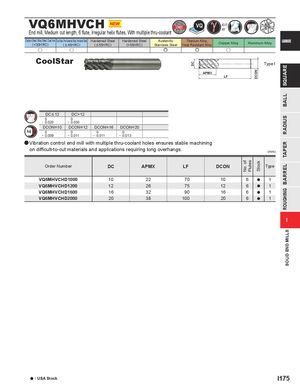

VQ6MHVCH
End mill, Medium cut length, 6 flute, Irregular helix flutes, With multiple thru-coolant 45°
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, CARBIDE
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
u u e e u
CoolStar Type1 APMX LF
| DC | DC>12 | ||
| 0 - 0.020 | 0 - 0.030 | ||
| DCON=10 | DCON=12 | DCON=16 | DCON=20 |
| 0 - 0.009 | 0 - 0.011 | 0 - 0.011 | 0 - 0.013 |
a Vibration control end mill with multiple thru-coolant holes ensures stable machining
on difficult-to-cut materials and applications requiring long overhangs.
| fi | fi pp | fi qg g | fi g. | (mm) | |||
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQ6MHVCHD1000 | 10 | 22 | 70 | 10 | 6 | a | 1 |
| VQ6MHVCHD1200 | 12 | 26 | 75 | 12 | 6 | a | 1 |
| VQ6MHVCHD1600 | 16 | 32 | 90 | 16 | 6 | a | 1 |
| VQ6MHVCHD2000 | 20 | 38 | 100 | 20 | 6 | a | 1 |
