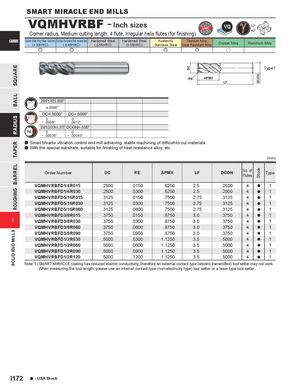

VQMHVRBF - Inch sizes
Corner radius, Medium cutting length, 4 flute, Irregular helix flutes (for finishing) 40°
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
Type1 RE APMX LF
.2500"<RE<.5000" ±.0006"
| DC<.5000" | DC=.5000" |
| 0 | 0 |
| - .0008" | - .0012" |
| .250"<DCON<.375" DCON=.500" | |
| 0 | 0 |
| - .00035" | - .00043" |
a Smart Miracle vibration control end mill achieving stable machining of difficult-to-cut materials. a With the special substrate, suitable for finishing of heat resistance alloy, etc.
| (inch) | ||||||||
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQMHVRBFD1/4R015 | .2500 | .0150 | .6250 | 2.5 | .2500 | 4 | a | 1 |
| VQMHVRBFD1/4R030 | .2500 | .0300 | .6250 | 2.5 | .2500 | 4 | a | 1 |
| VQMHVRBFD5/16R015 | .3125 | .0150 | .7500 | 2.75 | .3125 | 4 | a | 1 |
| VQMHVRBFD5/16R030 | .3125 | .0300 | .7500 | 2.75 | .3125 | 4 | a | 1 |
| VQMHVRBFD5/16R060 | .3125 | .0600 | .7500 | 2.75 | .3125 | 4 | a | 1 |
| VQMHVRBFD3/8R015 | .3750 | .0150 | .8750 | 3.0 | .3750 | 4 | a | 1 |
| VQMHVRBFD3/8R030 | .3750 | .0300 | .8750 | 3.0 | .3750 | 4 | a | 1 |
| VQMHVRBFD3/8R060 | .3750 | .0600 | .8750 | 3.0 | .3750 | 4 | a | 1 |
| VQMHVRBFD3/8R090 | .3750 | .0900 | .8750 | 3.0 | .3750 | 4 | a | 1 |
| VQMHVRBFD1/2R030 | .5000 | .0300 | 1.1250 | 3.5 | .5000 | 4 | a | 1 |
| VQMHVRBFD1/2R060 | .5000 | .0600 | 1.1250 | 3.5 | .5000 | 4 | a | 1 |
| VQMHVRBFD1/2R090 | .5000 | .0900 | 1.1250 | 3.5 | .5000 | 4 | a | 1 |
| VQMHVRBFD1/2R120 | .5000 | .1200 | 1.1250 | 3.5 | .5000 | 4 | a | 1 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
