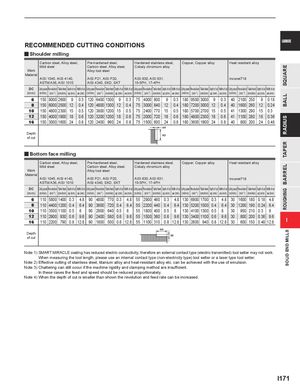

RECOMMENDED CUTTING CONDITIONS CARBIDE
y Shoulder milling
| Work Material | Carb Mild AISI AST | on steel, Alloy steel 1045, AISI 41 M A36, AISI 1 | ste 40, 010 | el, | Pre-hardene Carbon stee Alloy tool st AISI P21, AI AISI 4340, | d stee l, Alloy eel SI P20 SKD, S | l, stee , KT | l, | Harde Cobal AISI 6 15-5P | ned y chr 30, A H, 17 | stainle omium ISI 63 -4PH | ss stee alloy 1, | l, | Copper, Copper a | lloy | Heat Incon | resista el718 | nt all | oy | |
| DC (mm) | Cutting speed (m/min) | Revolution (min-1) Table feed (mm/min) D | epth of cu ap (mm) | t Width of cut ae (mm) | Cutting speed (m/min) Revolution (min-1) | Table feed (mm/min) D | epth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) R | evolutio (min-1) | n Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) Revolution (min-1) Table feed (mm/min) | Depth of cut ap (mm) Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table fee (mm/min | d ) Depth of cu ap (mm) | t Width of cut ae (mm) |
| 6 | 150 | 8000 2600 | 9 | 0.3 | 120 6400 | 1300 | 9 | 0.3 | 75 | 4000 | 800 | 9 | 0.3 | 180 9500 3000 | 9 0.3 | 40 | 2100 | 250 | 9 | 0.18 |
| 8 | 150 | 6000 2500 | 12 | 0.4 | 120 4800 | 1300 | 12 | 0.4 | 75 | 3000 | 840 | 12 | 0.4 | 180 7200 3000 | 12 0.4 | 40 | 1600 | 260 | 12 | 0.24 |
| 10 | 150 | 4800 2300 | 15 | 0.5 | 120 3800 | 1200 | 15 | 0.5 | 75 | 2400 | 770 | 15 | 0.5 | 180 5700 2700 | 15 0.5 | 41 | 1300 | 290 | 15 | 0.3 |
| 12 | 150 | 4000 1900 | 18 | 0.6 | 120 3200 | 1200 | 18 | 0.6 | 75 | 2000 | 720 | 18 | 0.6 | 180 4800 2300 | 18 0.6 | 41 | 1100 | 280 | 18 | 0.36 |
| 16 | 150 | 3000 1600 | 24 | 0.8 | 120 2400 | 960 | 24 | 0.8 | 75 | 1500 | 600 | 24 | 0.8 | 180 3600 1900 | 24 0.8 | 40 | 800 | 200 | 24 | 0.48 |
| Depth of cut | ae ap |
y Bottom face milling
| Work Material | Carb Mild AISI AST | on stee steel 1045, M A36, | l, Allo AISI 41 AISI 1 | y stee 40, 010 | l, | Pre-h Carbo Alloy AISI AISI 4 | arden n stee tool st P21, AI 340, | ed stee l, Alloy eel SI P20 SKD, S | l, stee , KT | l, | Harde Cobal AISI 6 15-5P | ned y chr 30, A H, 17 | stai om ISI -4 | nle ium 63 PH | ss stee alloy 1, | l, | Copper, Co | pper a | lloy | Heat Incon | resista el718 | nt al | loy | ||
| DC (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) D | epth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) R | evolutio (min-1) | n Tabl (mm | e feed /min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) Revolution (min-1) | Table feed (mm/min) | Depth of c ap (mm | ut ) Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table fee (mm/min | d ) Depth of cut ap (mm) | Width of cut ae (mm) |
| 6 | 110 | 5800 | 1400 | 0.3 | 4.8 | 90 | 4800 | 770 | 0.3 | 4.8 | 55 | 2900 | 4 | 60 | 0.3 | 4.8 | 130 6900 | 1700 | 0.3 | 4.8 | 30 | 1600 | 180 | 0.18 | 4.8 |
| 8 | 110 | 4400 | 1200 | 0.4 | 6.4 | 90 | 3600 | 720 | 0.4 | 6.4 | 55 | 2200 | 4 | 40 | 0.4 | 6.4 | 130 5200 | 1500 | 0.4 | 6.4 | 30 | 1200 | 190 | 0.24 | 6.4 |
| 10 | 110 | 3500 | 1100 | 0.5 | 8 | 90 | 2900 | 640 | 0.5 | 8 | 55 | 1800 | 4 | 00 | 0.5 | 8 | 130 4100 | 1300 | 0.5 | 8 | 30 | 950 | 210 | 0.3 | 8 |
| 12 | 110 | 2900 | 930 | 0.6 | 9.6 | 90 | 2400 | 580 | 0.6 | 9.6 | 55 | 1500 | 3 | 60 | 0.6 | 9.6 | 130 3400 | 1100 | 0.6 | 9.6 | 30 | 800 | 200 | 0.36 | 9.6 |
| 16 | 110 | 2200 | 790 | 0.8 | 12.8 | 90 | 1800 | 500 | 0.8 | 12.8 | 55 | 1100 | 3 | 10 | 0.8 | 12.8 | 130 2600 | 940 | 0.8 | 12.8 | 30 | 600 | 150 | 0.48 | 12.8 |
| Depth of cut | a | e | ap |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. Note 2) Effective cutting of stainless steel, titanium alloy and heat-resistant alloy etc. can be achieved with the use of emulsion. Note 3) Chattering can still occur if the machine rigidity and clamping method are insufficient. In these cases the feed and speed should be reduced proportionately. Note 4) When the depth of cut is smaller than shown the revolution and feed rate can be increased.
