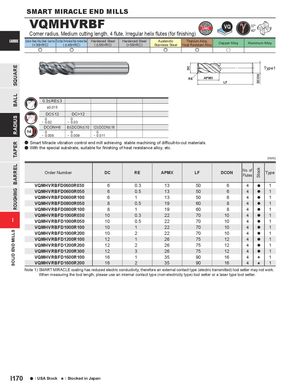

VQMHVRBF
Corner radius, Medium cutting length, 4 flute, Irregular helix flutes (for finishing) 40°
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
Type1 RE APMX LF
0.3<RE<3 ±0.015
| DC | 12 | DC>12 |
| 0 | 0 | |
| - 0.02 | - 0.03 |
| DCON=6 | 8 | DCON | 10 12 | DCON | 16 | |
| 0 | 0 | 0 | ||||
| - 0.008 | - 0.009 | - 0.011 |
a Smart Miracle vibration control end mill achieving stable machining of difficult-to-cut materials. a With the special substrate, suitable for finishing of heat resistance alloy, etc. (mm)
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQMHVRBFD0600R030 | 6 | 0.3 | 13 | 50 | 6 | 4 | a | 1 |
| VQMHVRBF D0600R050 | 6 | 0.5 | 13 | 50 | 6 | 4 | a | 1 |
| VQMHVRBF D0600R100 | 6 | 1 | 13 | 50 | 6 | 4 | a | 1 |
| VQMHVRBF D0800R050 | 8 | 0.5 | 19 | 60 | 8 | 4 | a | 1 |
| VQMHVRBF D0800R100 | 8 | 1 | 19 | 60 | 8 | 4 | a | 1 |
| VQMHVRBF D1000R030 | 10 | 0.3 | 22 | 70 | 10 | 4 | a | 1 |
| VQMHVRBF D1000R050 | 10 | 0.5 | 22 | 70 | 10 | 4 | a | 1 |
| VQMHVRBF D1000R100 | 10 | 1 | 22 | 70 | 10 | 4 | a | 1 |
| VQMHVRBF D1000R200 | 10 | 2 | 22 | 70 | 10 | 4 | a | 1 |
| VQMHVRBF D1200R100 | 12 | 1 | 26 | 75 | 12 | 4 | a | 1 |
| VQMHVRBF D1200R200 | 12 | 2 | 26 | 75 | 12 | 4 | a | 1 |
| VQMHVRBF D1200R300 | 12 | 3 | 26 | 75 | 12 | 4 | a | 1 |
| VQMHVRBF D1600R100 | 16 | 1 | 35 | 90 | 16 | 4 | s | 1 |
| VQMHVRBF D1600R200 | 16 | 2 | 35 | 90 | 16 | 4 | s | 1 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
