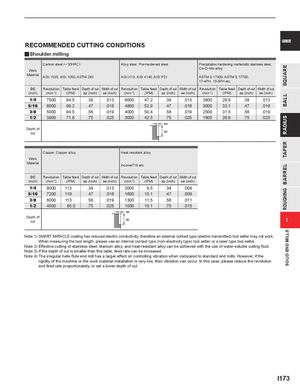

RECOMMENDED CUTTING CONDITIONS CARBIDE
y Shoulder milling
| Work Material | Carbon stee AISI 1035, A | l(─30HRC) ISI 1050, AS | TM 283 | Alloy steel, AISI H13, A | Pre-hardene ISI 4140, AIS | d steel I P21 | Precipitation Co-Cr-Mo a ASTM S 17 17-4PH, 15 | hardening m lloy 400, ASTM S -5PH etc. | artensitic stai 17700, | nless steel, | ||
| DC (inch) | Revolution (min-1) | Table feed (IPM) | Depth of cut ap (inch) | Width of cut ae (inch) | Revolution (min-1) | Table feed (IPM) | Depth of cut ap (inch) | Width of cut ae (inch) | Revolution (min-1) | Table feed (IPM) | Depth of cut ap (inch) | Width of cut ae (inch) |
| 1/4 | 7500 | 94.5 | .38 | .013 | 6000 | 47.2 | .38 | .013 | 3800 | 29.9 | .38 | .013 |
| 5/16 | 6000 | 99.2 | .47 | .016 | 4800 | 52.9 | .47 | .016 | 3000 | 33.1 | .47 | .016 |
| 3/8 | 5000 | 94.5 | .56 | .019 | 4000 | 50.4 | .56 | .019 | 2500 | 31.5 | .56 | .019 |
| 1/2 | 3800 | 71.8 | .75 | .025 | 3000 | 42.5 | .75 | .025 | 1900 | 26.9 | .75 | .025 |
| Depth of cut | ae ap | |||||||||||
| Work Material | Copper, Cop | per alloy | Heat resista Inconel718 | nt alloy etc. | ||||||||
| DC | Revolution | Table feed | Depth of cut | Width of cut | Revolution | Table feed | Depth of cut | Width of cut | ||||
| (inch) | (min-1) | (IPM) | ap (inch) | ae (inch) | (min-1) | (IPM) | ap (inch) | ae (inch) | ||||
| 1/4 | 9000 | 113 | .38 | .013 | 2000 | 9.5 | .38 | .008 | ||||
| 5/16 | 7200 | 119 | .47 | .016 | 1600 | 10.1 | .47 | .009 | ||||
| 3/8 | 6000 | 113 | .56 | .019 | 1300 | 11.5 | .56 | .011 | ||||
| 1/2 | 4500 | 85.0 | .75 | .025 | 1000 | 10.1 | .75 | .015 | ||||
| ae | ||||||||||||
| Depth of cut | ap |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. Note 2) Effective cutting of stainless steel, titanium alloy, and heat-resistant alloy can be achieved with the use of water-soluble cutting fluid. Note 3) If the depth of cut is smaller than this table, feed rate can be increased. Note 4) The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the work material installation is very low, then vibration can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut.
