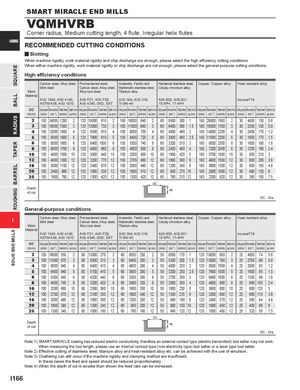

CARBIDE RECOMMENDED CUTTING CONDITIONS

y Slotting

When machine rigidity, work material rigidity and chip discharge are enough, please select the high efficiency cutting conditions. When either machine rigidity, work material rigidity or chip discharge are not enough, please select the general-purpose cutting conditions.

High efficiency conditions

Work Material	Carbo Mild s	n stee teel	l, Alloy steel,	Pre-ha Carbo Alloy t	rdene n steel ool ste	d steel, , Alloy s el	teel,	Austeni Marten Titaniu	tic, Fer sitic sta m alloy	ritic and inless s	teel,	Harde Cobal	ned sta y chrom	inless s ium all	teel, oy	Coppe	r, Cop	per a	lloy	Heat	resista	nt	allo	y
	AISI	1045, A	ISI 4140,	AISI P	21, AI	SI P20	,	AISI 3	04, AIS	I 316,		AISI	630, AI	SI 631						Incon	el718
	AST	M A36,	AISI 1010	AISI 4	340, S	KD, S	KT	Ti-6Al-	4V			15-5P	H, 17-	4PH
DC	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed	Revolution	Table feed	Depth of cut	Cutting speed R	evolution T	able feed D	epth of cut	Cutting speed	Revolution	Table feed	Depth of cut	Cutting speed	Revolution	Table feed	Depth of cut	Cutting speed	Revolution	Tabl	e feed	Depth of cut
(mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1)	(mm/min)	ap (mm)	(m/min)	(min-1) (	mm/min) a	p (mm)	(m/min)	(min-1)	(mm/min)	ap (mm)	(m/min)	(min-1)	(mm/min	) ap (mm)	(m/min)	(min-1)	(mm	/min)	ap (mm)
2	150	24000	1200 2	120	19000	610	2	100 1	6000	640	2	60	9500	300	1	180	29000	1500	2	30	4800	1	30	0.6
3	150	16000	1500 3	120	13000	730	3	100 1	1000	660	3	60	6400	360	1.5	180	19000	1700	3	30	3200	1	50	0.9
4	150	12000	1900 4	120	9500	910	4	100	8000	700	4	60	4800	460	2	180	14000	2200	4	30	2400	1	70	1.2
5	150	9500	1900 5	120	7600	910	5	100	6400	720	5	60	3800	460	2.5	180	11000	2200	5	30	1900	1	70	1.5
6	150	8000	1900 6	120	6400	1000	6	100	5300	740	6	60	3200	510	3	180	9500	2300	6	30	1600	1	80	1.8
8	150	6000	1700 8	120	4800	960	8	100	4000	800	8	60	2400	480	4	180	7200	2000	8	30	1200	1	90	2.4
10	150	4800	1500 10	120	3800	840	10	100	3200	900	10	60	1900	420	5	180	5700	1800	10	30	950	2	10	3
12	150	4000	1300 12	120	3200	770	12	100	2700	860	12	60	1600	380	6	180	4800	1500	12	30	800	2	00	3.6
16	150	3000	1100 12	120	2400	670	12	100	2000	640	12	60	1200	340	8	180	3600	1300	12	30	600	1	50	4.8
20	150	2400	860 12	120	1900	530	12	100	1600	510	12	60	950	270	10	180	2900	1000	12	30	480	1	20	6
25	150	1900	760 12	120	1500	420	12	100	1300	420	12	60	760	210	12	180	2300	920	12	30	380	1	00	7.5
Depth											DC		ap
of cut Gene	ral-p	urpo	se cond	ition	s																		DC	: Dia.
Work Material	Carbo Mild s	n stee teel	l, Alloy steel,	Pre-ha Carbo Alloy t	rdene n steel ool ste	d steel, , Alloy s el	teel,	Austeni Marten Titaniu	tic, Fer sitic sta m alloy	ritic and inless s	teel,	Harde Cobal	ned sta y chrom	inless s ium all	teel, oy	Coppe	r, Cop	per a	lloy	Heat	resista	nt	allo	y
	AISI	1045, A	ISI 4140,	AISI P	21, AI	SI P20	,	AISI 3	04, AIS	I 316,		AISI	630, AI	SI 631						Incon	el718
	AST	M A36,	AISI 1010	AISI 4	340, S	KD, S	KT	Ti-6Al-	4V			15-5P	H, 17-	4PH
DC	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed	Revolution	Table feed	Depth of cut	Cutting speed R	evolution T	able feed D	epth of cut	Cutting speed	Revolution	Table feed	Depth of cut	Cutting speed	Revolution	Table feed	Depth of cut	Cutting speed	Revolution	Tabl	e feed	Depth of cut
(mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1)	(mm/min)	ap (mm)	(m/min)	(min-1) (	mm/min) a	p (mm)	(m/min)	(min-1)	(mm/min)	ap (mm)	(m/min)	(min-1)	(mm/min	) ap (mm)	(m/min)	(min-1)	(mm	/min)	ap (mm)
2	100	16000	550 2	80	13000	270	2	60	9500	250	2	50	8000	170	1	120	19000	650	2	25	4000	7	4	0.6
3	100	11000	670 3	80	8500	310	3	60	6400	250	3	50	5300	200	1.5	120	13000	790	3	25	2700	8	6	0.9
4	100	8000	840 4	80	6400	410	4	60	4800	280	4	50	4000	250	2	120	9500	1000	4	25	2000	9	3	1.2
5	100	6400	840 5	80	5100	410	5	60	3800	280	5	50	3200	250	2.5	120	7600	1000	5	25	1600	9	5	1.5
6	100	5300	840 6	80	4200	440	6	60	3200	300	6	50	2700	290	3	120	6400	1000	6	25	1300	9	6	1.8
8	100	4000	740 8	80	3200	420	8	60	2400	320	8	50	2000	260	4	120	4800	890	8	25	990	10	0	2.4
10	100	3200	680 10	80	2500	360	10	60	1900	350	10	50	1600	230	5	120	3800	800	10	25	800	12	0	3
12	100	2700	570 12	80	2100	330	12	60	1600	340	12	50	1300	210	6	120	3200	680	12	25	660	11	0	3.6
16	100	2000	480 12	80	1600	300	12	60	1200	250	12	50	990	180	8	120	2400	570	12	25	500	8	4	4.8
20	100	1600	380 12	80	1300	240	12	60	950	200	12	50	800	150	10	120	1900	450	12	25	400	6	8	6
25	100	1300	340 12	80	1000	180	12	60	760	160	12	50	640	120	12	120	1500	400	12	25	320	5	0	7.5
Depth											DC
of cut													ap

DC : Dia. Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. Note 2) Effective cutting of stainless steel, titanium alloy and heat-resistant alloy etc. can be achieved with the use of emulsion.

Note 4) When the depth of cut is smaller than shown the feed rate can be increased.
