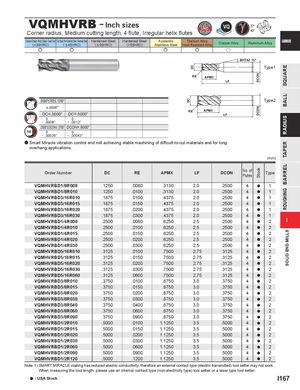

VQMHVRB - Inch sizes
Corner radius, Medium cutting length, 4 flute, Irregular helix flutes 40°
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, CARBIDE
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
| e | e | e | e | u | |||
| BHTA2 15° | |||||||
| Type1 | |||||||
| RE | APMX | ||||||
| LF |
| .0080" RE | .1200" | Type2 | |
| ±.0006" |
| < | = | RE | APMX | |||
| DC | .5000" | DC | .5000" | LF |
0 0 - .0008" - .0012" .2500" DCON .3750" DCON=.5000" 0 0
- .00035" - .00043" a Smart Miracle vibration control end mill achieving stable machining of difficult-to-cut materials and for long overhang applications. (inch)
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQMHVRBD1/8R008 | .1250 | .0080 | .3130 | 2.0 | .2500 | 4 | a | 1 |
| VQMHVRBD1/8R010 | .1250 | .0100 | .3130 | 2.0 | .2500 | 4 | a | 1 |
| VQMHVRBD3/16R010 | .1875 | .0100 | .4375 | 2.0 | .2500 | 4 | a | 1 |
| VQMHVRBD3/16R015 | .1875 | .0150 | .4375 | 2.0 | .2500 | 4 | a | 1 |
| VQMHVRBD3/16R020 | .1875 | .0200 | .4375 | 2.0 | .2500 | 4 | a | 1 |
| VQMHVRBD3/16R030 | .1875 | .0300 | .4375 | 2.0 | .2500 | 4 | a | 1 |
| VQMHVRBD1/4R008 | .2500 | .0080 | .6250 | 2.5 | .2500 | 4 | a | 2 |
| VQMHVRBD1/4R010 | .2500 | .0100 | .6250 | 2.5 | .2500 | 4 | a | 2 |
| VQMHVRBD1/4R015 | .2500 | .0150 | .6250 | 2.5 | .2500 | 4 | a | 2 |
| VQMHVRBD1/4R020 | .2500 | .0200 | .6250 | 2.5 | .2500 | 4 | a | 2 |
| VQMHVRBD1/4R030 | .2500 | .0300 | .6250 | 2.5 | .2500 | 4 | a | 2 |
| VQMHVRBD5/16R010 | .3125 | .0100 | .7500 | 2.75 | .3125 | 4 | a | 2 |
| VQMHVRBD5/16R015 | .3125 | .0150 | .7500 | 2.75 | .3125 | 4 | a | 2 |
| VQMHVRBD5/16R020 | .3125 | .0200 | .7500 | 2.75 | .3125 | 4 | a | 2 |
| VQMHVRBD5/16R030 | .3125 | .0300 | .7500 | 2.75 | .3125 | 4 | a | 2 |
| VQMHVRBD5/16R060 | .3125 | .0600 | .7500 | 2.75 | .3125 | 4 | a | 2 |
| VQMHVRBD3/8R010 | .3750 | .0100 | .8750 | 3.0 | .3750 | 4 | a | 2 |
| VQMHVRBD3/8R015 | .3750 | .0150 | .8750 | 3.0 | .3750 | 4 | a | 2 |
| VQMHVRBD3/8R020 | .3750 | .0200 | .8750 | 3.0 | .3750 | 4 | a | 2 |
| VQMHVRBD3/8R030 | .3750 | .0300 | .8750 | 3.0 | .3750 | 4 | a | 2 |
| VQMHVRBD3/8R040 | .3750 | .0400 | .8750 | 3.0 | .3750 | 4 | a | 2 |
| VQMHVRBD3/8R060 | .3750 | .0600 | .8750 | 3.0 | .3750 | 4 | a | 2 |
| VQMHVRBD3/8R090 | .3750 | .0900 | .8750 | 3.0 | .3750 | 4 | a | 2 |
| VQMHVRBD1/2R010 | .5000 | .0100 | 1.1250 | 3.5 | .5000 | 4 | a | 2 |
| VQMHVRBD1/2R015 | .5000 | .0150 | 1.1250 | 3.5 | .5000 | 4 | a | 2 |
| VQMHVRBD1/2R020 | .5000 | .0200 | 1.1250 | 3.5 | .5000 | 4 | a | 2 |
| VQMHVRBD1/2R030 | .5000 | .0300 | 1.1250 | 3.5 | .5000 | 4 | a | 2 |
| VQMHVRBD1/2R060 | .5000 | .0600 | 1.1250 | 3.5 | .5000 | 4 | a | 2 |
| VQMHVRBD1/2R090 | .5000 | .0900 | 1.1250 | 3.5 | .5000 | 4 | a | 2 |
| VQMHVRBD1/2R120 | .5000 | .1200 | 1.1250 | 3.5 | .5000 | 4 | a | 2 |
