CARBIDE

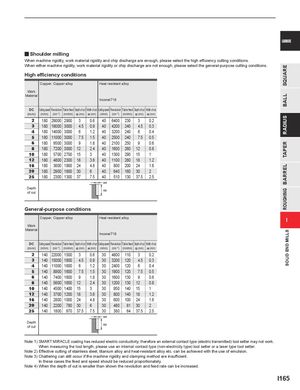

y Shoulder milling
When machine rigidity, work material rigidity and chip discharge are enough, please select the high efficiency cutting conditions. When either machine rigidity, work material rigidity or chip discharge are not enough, please select the general-purpose cutting conditions.
High efficiency conditions
| Work Material | Coppe | r, Coppe | r alloy | Heat r Incone | esistant l718 | alloy | ||||
| DC | Cutting speed | Revolution | Table feed | Depth of cut | Width of cut | Cutting speed | Revolution | Table feed | Depth of cut | Width of cut |
| (mm) | (m/min) | (min-1) | (mm/min) | ap (mm) | ae (mm) | (m/min) | (min-1) | (mm/min) | ap (mm) | ae (mm) |
| 2 | 180 | 29000 | 2900 | 3 | 0.6 | 40 | 6400 | 230 | 3 | 0.2 |
| 3 | 180 | 19000 | 3000 | 4.5 | 0.9 | 40 | 4200 | 240 | 4.5 | 0.3 |
| 4 | 180 | 14000 | 3000 | 6 | 1.2 | 40 | 3200 | 240 | 6 | 0.4 |
| 5 | 180 | 11000 | 3000 | 7.5 | 1.5 | 40 | 2500 | 240 | 7.5 | 0.5 |
| 6 | 180 | 9500 | 3000 | 9 | 1.8 | 40 | 2100 | 250 | 9 | 0.6 |
| 8 | 180 | 7200 | 3000 | 12 | 2.4 | 40 | 1600 | 260 | 12 | 0.8 |
| 10 | 180 | 5700 | 2700 | 15 | 3 | 40 | 1300 | 290 | 15 | 1 |
| 12 | 180 | 4800 | 2300 | 18 | 3.6 | 40 | 1100 | 280 | 18 | 1.2 |
| 16 | 180 | 3600 | 1900 | 24 | 4.8 | 40 | 800 | 200 | 24 | 1.6 |
| 20 | 180 | 2900 | 1600 | 30 | 6 | 40 | 640 | 160 | 30 | 2 |
| 25 | 180 | 2300 | 1300 | 37 | 7.5 | 40 | 510 | 130 | 37.5 | 2.5 |
| ae | ||||||||||
| Depth of cut | ap |
General-purpose conditions
| Work Material | Coppe | r, Coppe | r alloy | Heat r Incone | esistant l718 | alloy | ||||
| DC (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) |
| 2 | 140 | 22000 | 1500 | 3 | 0.6 | 30 | 4800 | 110 | 3 | 0.2 |
| 3 | 140 | 15000 | 1600 | 4.5 | 0.9 | 30 | 3200 | 120 | 4.5 | 0.3 |
| 4 | 140 | 11000 | 1600 | 6 | 1.2 | 30 | 2400 | 120 | 6 | 0.4 |
| 5 | 140 | 8900 | 1600 | 7.5 | 1.5 | 30 | 1900 | 120 | 7.5 | 0.5 |
| 6 | 140 | 7400 | 1600 | 9 | 1.8 | 30 | 1600 | 130 | 9 | 0.6 |
| 8 | 140 | 5600 | 1600 | 12 | 2.4 | 30 | 1200 | 130 | 12 | 0.8 |
| 10 | 140 | 4500 | 1400 | 15 | 3 | 30 | 950 | 140 | 15 | 1 |
| 12 | 140 | 3700 | 1200 | 18 | 3.6 | 30 | 800 | 140 | 18 | 1.2 |
| 16 | 140 | 2800 | 1000 | 24 | 4.8 | 30 | 600 | 100 | 24 | 1.6 |
| 20 | 140 | 2200 | 780 | 30 | 6 | 30 | 480 | 81 | 30 | 2 |
| 25 | 140 | 1800 | 670 | 37.5 | 7.5 | 30 | 380 | 64 | 37.5 | 2.5 |
| ae | ||||||||||
| Depth of cut | ap |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. Note 2) Effective cutting of stainless steel, titanium alloy and heat-resistant alloy etc. can be achieved with the use of emulsion.
