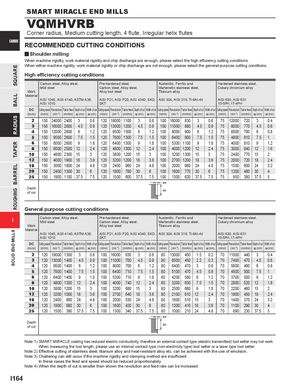

Общий каталог Mitsubishi 2020 - 2021 - страница 923
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
CARBIDE RECOMMENDED CUTTING CONDITIONS
y Shoulder milling
When machine rigidity, work material rigidity and chip discharge are enough, please select the high efficiency cutting conditions. When either machine rigidity, work material rigidity or chip discharge are not enough, please select the general-purpose cutting conditions.
High efficiency cutting conditions
| Work Material | Carbo Mild st AISI 1 AISI 1 | n steel, A eel 045, AIS 010 | lloy ste I 4140, | el, ASTM A | 36, | Pre-ha Carbon Alloy to AISI P2 SKT | rdened steel, ol steel 1, AISI | steel, Alloy ste P20, AI | el, SI 4340 | , SKD, | Austen Marten Titaniu AISI 3 | itic, Fer sitic sta m alloy 04, AISI | ritic and inless s 316, Ti | teel, -6Al-4V | Harde Cobal AISI 6 15-5P | ned stai y chromi 30, AISI H,17-4P | nless st um allo 631 H | eel, y | ||
| DC (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) |
| 2 | 150 | 24000 | 2400 | 3 | 0.6 | 120 | 19000 | 1100 | 3 | 0.6 | 100 | 16000 | 830 | 3 | 0.6 | 75 | 12000 | 720 | 3 | 0.4 |
| 3 | 150 | 16000 | 2600 | 4.5 | 0.9 | 120 | 13000 | 1200 | 4.5 | 0.9 | 100 | 11000 | 880 | 4.5 | 0.9 | 75 | 8000 | 770 | 4.5 | 0.6 |
| 4 | 150 | 12000 | 2600 | 6 | 1.2 | 120 | 9500 | 1300 | 6 | 1.2 | 100 | 8000 | 900 | 6 | 1.2 | 75 | 6000 | 790 | 6 | 0.8 |
| 5 | 150 | 9500 | 2600 | 7.5 | 1.5 | 120 | 7600 | 1300 | 7.5 | 1.5 | 100 | 6400 | 900 | 7.5 | 1.5 | 75 | 4800 | 810 | 7.5 | 1 |
| 6 | 150 | 8000 | 2600 | 9 | 1.8 | 120 | 6400 | 1300 | 9 | 1.8 | 100 | 5300 | 1100 | 9 | 1.8 | 75 | 4000 | 810 | 9 | 1.2 |
| 8 | 150 | 6000 | 2500 | 12 | 2.4 | 120 | 4800 | 1300 | 12 | 2.4 | 100 | 4000 | 1200 | 12 | 2.4 | 75 | 3000 | 840 | 12 | 1.6 |
| 10 | 150 | 4800 | 2300 | 15 | 3 | 120 | 3800 | 1200 | 15 | 3 | 100 | 3200 | 1300 | 15 | 3 | 75 | 2400 | 770 | 15 | 2 |
| 12 | 150 | 4000 | 1900 | 18 | 3.6 | 120 | 3200 | 1200 | 18 | 3.6 | 100 | 2700 | 1200 | 18 | 3.6 | 75 | 2000 | 720 | 18 | 2.4 |
| 16 | 150 | 3000 | 1600 | 24 | 4.8 | 120 | 2400 | 960 | 24 | 4.8 | 100 | 2000 | 960 | 24 | 4.8 | 75 | 1500 | 600 | 24 | 3.2 |
| 20 | 150 | 2400 | 1300 | 30 | 6 | 120 | 1900 | 760 | 30 | 6 | 100 | 1600 | 770 | 30 | 6 | 75 | 1200 | 480 | 30 | 4 |
| 25 | 150 | 1900 | 1100 | 37.5 | 7.5 | 120 | 1500 | 600 | 37.5 | 7.5 | 100 | 1300 | 620 | 37.5 | 7.5 | 75 | 950 | 380 | 37.5 | 5 |
| Depth of cut | ae ap |
General purpose cutting conditions
| Work Material | Carbo Mild st AISI 1 AISI 1 | n steel, A eel 045, AIS 010 | lloy ste I 4140, | el, ASTM A | 36, | Pre-ha Carbo Alloy t AISI P SKT | rdened s n steel, A ool steel 21, AISI | teel, lloy ste P20, AI | el, SI 4340 | , SKD, | Austen Marten Titaniu AISI 3 | itic, Fer sitic sta m alloy 04, AISI | ritic and inless s 316, Ti- | teel, 6Al-4V | Harde Cobal AISI 6 15-5P | ned stai y chromi 30, AISI H,17-4P | nless st um allo 631 H | eel, y | ||
| DC (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Width of cut ae (mm) |
| 2 | 120 | 19000 | 1300 | 3 | 0.6 | 100 | 16000 | 630 | 3 | 0.6 | 80 | 13000 | 450 | 1.5 | 0.2 | 70 | 11000 | 440 | 3 | 0.4 |
| 3 | 120 | 13000 | 1400 | 4.5 | 0.9 | 100 | 11000 | 700 | 4.5 | 0.9 | 80 | 8500 | 450 | 2.2 | 0.3 | 70 | 7400 | 470 | 4.5 | 0.6 |
| 4 | 120 | 9500 | 1400 | 6 | 1.2 | 100 | 8000 | 700 | 6 | 1.2 | 80 | 6400 | 470 | 3 | 0.6 | 70 | 5600 | 490 | 6 | 0.8 |
| 5 | 120 | 7600 | 1400 | 7.5 | 1.5 | 100 | 6400 | 710 | 7.5 | 1.5 | 80 | 5100 | 470 | 4.5 | 0.9 | 70 | 4500 | 500 | 7.5 | 1 |
| 6 | 120 | 6400 | 1400 | 9 | 1.8 | 100 | 5300 | 710 | 9 | 1.8 | 80 | 4200 | 580 | 6 | 1.2 | 70 | 3700 | 500 | 9 | 1.2 |
| 8 | 120 | 4800 | 1300 | 12 | 2.4 | 100 | 4000 | 740 | 12 | 2.4 | 80 | 3200 | 630 | 7.5 | 1.5 | 70 | 2800 | 520 | 12 | 1.6 |
| 10 | 120 | 3800 | 1200 | 15 | 3 | 100 | 3200 | 680 | 15 | 3 | 80 | 2500 | 660 | 9 | 1.8 | 70 | 2200 | 460 | 15 | 2 |
| 12 | 120 | 3200 | 1000 | 18 | 3.6 | 100 | 2700 | 640 | 18 | 3.6 | 80 | 2100 | 610 | 12 | 2.4 | 70 | 1900 | 450 | 18 | 2.4 |
| 16 | 120 | 2400 | 860 | 24 | 4.8 | 100 | 2000 | 530 | 24 | 4.8 | 80 | 1600 | 510 | 15 | 3 | 70 | 1400 | 370 | 24 | 3.2 |
| 20 | 120 | 1900 | 680 | 30 | 6 | 100 | 1600 | 420 | 30 | 6 | 80 | 1300 | 410 | 18 | 3.6 | 70 | 1100 | 290 | 30 | 4 |
| 25 | 120 | 1500 | 390 | 37.5 | 7.5 | 100 | 1300 | 340 | 37.5 | 7.5 | 80 | 1000 | 210 | 24 | 4.8 | 70 | 890 | 230 | 37.5 | 5 |
| Depth of cut | ae ap |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. Note 2) Effective cutting of stainless steel, titanium alloy and heat-resistant alloy etc. can be achieved with the use of emulsion.
