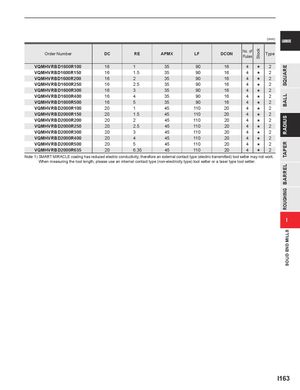

(mm) CARBIDE No. of Stock Order Number DC RE APMX LF DCON Type Flutes VQMHVRB D1600R100 16 1 35 90 16 4 s 2 SQUARE VQMHVRBD1600R150 16 1.5 35 90 16 4 s 2 VQMHVRBD1600R200 16 2 35 90 16 4 s 2 VQMHVRB D1600R250 16 2.5 35 90 16 4 s 2 VQMHVRB D1600R300 16 3 35 90 16 4 s 2 VQMHVRB D1600R400 16 4 35 90 16 4 2 BALL s VQMHVRB D1600R500 16 5 35 90 16 4 s 2 VQMHVRB D2000R100 20 1 45 110 20 4 s 2 VQMHVRB D2000R150 20 1.5 45 110 20 4 s 2 RADIUS VQMHVRB D2000R200 20 2 45 110 20 4 s 2 VQMHVRB D2000R250 20 2.5 45 110 20 4 s 2 VQMHVRB D2000R300 20 3 45 110 20 4 s 2 VQMHVRB D2000R400 20 4 45 110 20 4 s 2 VQMHVRB D2000R500 20 5 45 110 20 4 2 TAPER s VQMHVRB D2000R635 20 6.35 45 110 20 4 s 2 Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. ROUGHING BARREL I SOLID END MILLS I163
