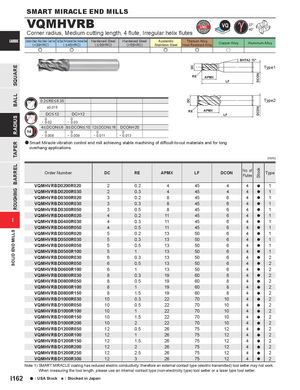

Corner radius, Medium cutting length, 4 flute, Irregular helix flutes 40°
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
| e | e | e | e | u | |||
| BHTA2 15° | |||||||
| Type1 | |||||||
| RE | APMX | ||||||
| LF |
| 0.2 | RE | 6.35 | Type2 |
| ±0.015 |
> RE APMX
| DC<12 | DC | 12 | LF |
| 0 | 0 | ||
| - 0.02 | - 0.03 |
| 4 | DCON | 6 8 | DCON | 10 12 | DCON | 16 DCON=20 | ||
| 0 | 0 | 0 | 0 | |||||
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a Smart Miracle vibration control end mill achieving stable machining of difficult-to-cut materials and for long overhang applications. (mm)
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQMHVRBD0200R020 | 2 | 0.2 | 4 | 45 | 4 | 4 | a | 1 |
| VQMHVRB D0200R030 | 2 | 0.3 | 4 | 45 | 4 | 4 | a | 1 |
| VQMHVRB D0300R020 | 3 | 0.2 | 8 | 45 | 6 | 4 | a | 1 |
| VQMHVRB D0300R030 | 3 | 0.3 | 8 | 45 | 6 | 4 | a | 1 |
| VQMHVRB D0300R050 | 3 | 0.5 | 8 | 45 | 6 | 4 | a | 1 |
| VQMHVRB D0400R020 | 4 | 0.2 | 11 | 45 | 6 | 4 | a | 1 |
| VQMHVRB D0400R030 | 4 | 0.3 | 11 | 45 | 6 | 4 | a | 1 |
| VQMHVRB D0400R050 | 4 | 0.5 | 11 | 45 | 6 | 4 | a | 1 |
| VQMHVRB D0500R020 | 5 | 0.2 | 13 | 50 | 6 | 4 | a | 1 |
| VQMHVRB D0500R030 | 5 | 0.3 | 13 | 50 | 6 | 4 | a | 1 |
| VQMHVRB D0500R050 | 5 | 0.5 | 13 | 50 | 6 | 4 | a | 1 |
| VQMHVRB D0500R100 | 5 | 1 | 13 | 50 | 6 | 4 | a | 1 |
| VQMHVRB D0600R030 | 6 | 0.3 | 13 | 50 | 6 | 4 | a | 2 |
| VQMHVRB D0600R050 | 6 | 0.5 | 13 | 50 | 6 | 4 | a | 2 |
| VQMHVRB D0600R100 | 6 | 1 | 13 | 50 | 6 | 4 | a | 2 |
| VQMHVRB D0800R030 | 8 | 0.3 | 19 | 60 | 8 | 4 | a | 2 |
| VQMHVRB D0800R050 | 8 | 0.5 | 19 | 60 | 8 | 4 | a | 2 |
| VQMHVRB D0800R100 | 8 | 1 | 19 | 60 | 8 | 4 | a | 2 |
| VQMHVRB D0800R150 | 8 | 1.5 | 19 | 60 | 8 | 4 | a | 2 |
| VQMHVRB D1000R030 | 10 | 0.3 | 22 | 70 | 10 | 4 | a | 2 |
| VQMHVRB D1000R050 | 10 | 0.5 | 22 | 70 | 10 | 4 | a | 2 |
| VQMHVRB D1000R100 | 10 | 1 | 22 | 70 | 10 | 4 | a | 2 |
| VQMHVRB D1000R150 | 10 | 1.5 | 22 | 70 | 10 | 4 | a | 2 |
| VQMHVRB D1000R200 | 10 | 2 | 22 | 70 | 10 | 4 | a | 2 |
| VQMHVRB D1200R050 | 12 | 0.5 | 26 | 75 | 12 | 4 | a | 2 |
| VQMHVRB D1200R100 | 12 | 1 | 26 | 75 | 12 | 4 | a | 2 |
| VQMHVRB D1200R150 | 12 | 1.5 | 26 | 75 | 12 | 4 | a | 2 |
| VQMHVRB D1200R200 | 12 | 2 | 26 | 75 | 12 | 4 | a | 2 |
| VQMHVRB D1200R250 | 12 | 2.5 | 26 | 75 | 12 | 4 | a | 2 |
| VQMHVRB D1200R300 | 12 | 3 | 26 | 75 | 12 | 4 | a | 2 |
