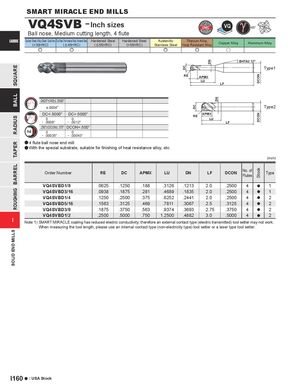

VQ4SVB - Inch sizes
Ball nose, Medium cutting length, 4 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
BHTA2 12° Type1 RE APMX LU
LF
.0625"<RE<.2500" ±.0004" Type2
| DC<.5000" | DC=.5000" | APMX | |||
| RE | |||||
| 0 | 0 | LU | |||
| - .0008" | - .0012" | LF |
.250"<DCON<.375" DCON=.500" 0 0 - .00035" - .00043" a 4 flute ball nose end mill
a With the special substrate, suitable for finishing of heat resistance alloy, etc. (inch)
| Order Number | RE | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| VQ4SVBD1/8 | .0625 | .1250 | .188 | .3126 | .1213 | 2.0 | .2500 | 4 | a | 1 |
| VQ4SVBD3/16 | .0938 | .1875 | .281 | .4689 | .1835 | 2.0 | .2500 | 4 | a | 1 |
| VQ4SVBD1/4 | .1250 | .2500 | .375 | .6252 | .2441 | 2.0 | .2500 | 4 | a | 2 |
| VQ4SVBD5/16 | .1563 | .3125 | .469 | .7811 | .3067 | 2.5 | .3125 | 4 | a | 2 |
| VQ4SVBD3/8 | .1875 | .3750 | .563 | .9374 | .3693 | 2.75 | .3750 | 4 | a | 2 |
| VQ4SVBD1/2 | .2500 | .5000 | .750 | 1.2500 | .4882 | 3.0 | .5000 | 4 | a | 2 |
I a Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
