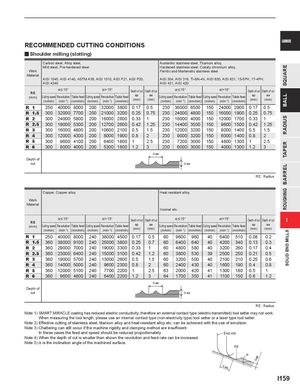

RECOMMENDED CUTTING CONDITIONS CARBIDE

y Shoulder milling (slotting)

Work Material	Carbon Mild ste AISI 104 AISI 434	steel, Alloy el, Pre-har 5, AISI 41 0	steel, dened ste 40, ASTM	el A36, AI	SI 1010, A	ISI P21,	AISI P20,		Austenit Hardene Ferritic a AISI 304 AISI 431	ic stainles d stainles nd Marten , AISI 316 , AISI 420	s steel, T s steel, C sitic stai , Ti-6Al-4	itanium a obaly chr nless ste V, AISI 6	lloy, omium all el 30, AISI 6	oy, 31, 15-5P	H, 17-4P	H,
RE		%			%>15°		Depth of cut	Depth of cut		%			%>15°		Depth of cut	Depth of cut
(mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	ap (mm)	ae (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Cutting spee (m/min)	d Revolution (min-1)	Table feed (mm/min)	ap (mm)	ae (mm)
R 1	250	40000	8000	200	32000	3800	0.17	0.5	230	36000	6500	150	24000	2900	0.17	0.5
R 1.5	300	32000	7700	200	21000	3200	0.25	0.75	230	24000	4800	150	16000	1900	0.25	0.75
R 2	300	24000	5800	200	16000	2800	0.33	1	230	18000	4000	150	12000	1700	0.33	1
R 2.5	300	19000	5300	200	12700	2600	0.42	1.25	230	14400	3500	150	9600	1500	0.42	1.25
R 3	300	16000	4800	200	10600	2100	0.5	1.5	230	12000	3200	150	8000	1400	0.5	1.5
R 4	300	12000	4300	200	8000	1900	0.8	2	230	9000	3200	150	6000	1400	0.8	2
R 5	300	9600	4100	200	6400	1800	1	2.5	230	7200	3000	150	4800	1300	1	2.5
R 6	300	8000	4000	200	5300	1800	1.2	3	230	6000	3000	150	4000	1300	1.2	3
Depth of cut											p

RE : Radius

Work Material	Copper,	Copper al	loy						Heat res Inconel	istant allo etc.	y
RE		%			%>15°		Depth of cut	Depth of cut		%			%>15°		Depth of cut	Depth of cut
(mm)	Cutting spee (m/min)	d Revolution (min-1)	Table feed (mm/min)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	ap (mm)	ae (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	ap (mm)	ae (mm)
R 1	250	40000	8000	240	38000	4500	0.17	0.5	60	9600	960	40	6400	510	0.08	0.2
R 1.5	360	38000	9100	240	25000	3800	0.25	0.7	60	6400	640	40	4200	340	0.13	0.3
R 2	360	29000	7000	240	19000	3300	0.33	1	60	4800	580	40	3200	260	0.17	0.4
R 2.5	360	23000	6400	240	15000	3100	0.42	1.2	60	3800	530	39	2500	250	0.21	0.5
R 3	360	19000	5700	240	13000	2600	0.5	1.5	60	3200	500	40	2100	210	0.25	0.6
R 4	360	14000	5000	240	9600	2300	0.8	2	60	2400	430	40	1600	190	0.4	0.8
R 5	360	12000	5100	240	7700	2200	1	2.5	63	2000	420	41	1300	180	0.5	1
R 6	360	9600	4800	240	6400	2200	1.2	3	64	1700	350	41	1100	150	0.6	1.2
Depth of cut											p

RE : Radius Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. Note 2) Effective cutting of stainless steel, titanium alloy and heat-resistant alloy etc. can be achieved with the use of emulsion. Note 3) Chattering can still occur if the machine rigidity and clamping method are insufficient. In these cases the feed and speed should be reduced proportionately. End mill Note 4) When the depth of cut is smaller than shown the revolution and feed rate can be increased. Note 5) % is the inclination angle of the machined surface. RE
