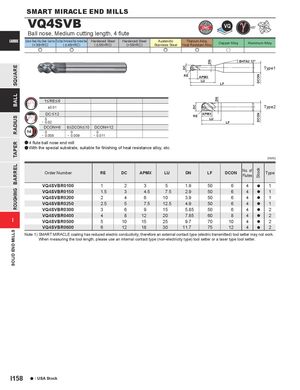

VQ4SVB
Ball nose, Medium cutting length, 4 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
BHTA2 12° Type1 RE APMX LU
LF
1<RE<6 ±0.01 Type2 DC< 12 APMX RE 0 LU - 0.02 LF
| DCON=6 | 8 | DCON | 10 DCON=12 | |
| 0 | 0 | 0 | ||
| - 0.008 | - 0.009 | - 0.011 |
a 4 flute ball nose end mill a With the special substrate, suitable for finishing of heat resistance alloy, etc. (mm)
| Order Number | RE | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| VQ4SVBR0100 | 1 | 2 | 3 | 5 | 1.9 | 50 | 6 | 4 | a | 1 |
| VQ4SVBR0150 | 1.5 | 3 | 4.5 | 7.5 | 2.9 | 50 | 6 | 4 | a | 1 |
| VQ4SVBR0200 | 2 | 4 | 6 | 10 | 3.9 | 50 | 6 | 4 | a | 1 |
| VQ4SVBR0250 | 2.5 | 5 | 7.5 | 12.5 | 4.9 | 50 | 6 | 4 | a | 1 |
| VQ4SVBR0300 | 3 | 6 | 9 | 15 | 5.85 | 50 | 6 | 4 | a | 2 |
| VQ4SVBR0400 | 4 | 8 | 12 | 20 | 7.85 | 60 | 8 | 4 | a | 2 |
| VQ4SVBR0500 | 5 | 10 | 15 | 25 | 9.7 | 70 | 10 | 4 | a | 2 |
| VQ4SVBR0600 | 6 | 12 | 18 | 30 | 11.7 | 75 | 12 | 4 | a | 2 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
