CARBIDE

y Slotting

When machine rigidity, work material rigidity and chip discharge are enough, please select the high efficiency cutting conditions. When either machine rigidity, work material rigidity or chip discharge are not enough, please select the general-purpose cutting conditions.

High efficiency conditions

Work Material	Carbon Mild st AISI 1 A36, A	steel, A eel 045, AIS ISI 1010	lloy steel I 4140,	, ASTM	Pre-har Carbon Alloy to AISI P 4340	dened s steel, Al ol steel 21, AISI	teel, loy stee P20, AI	l, SI	Auste Marte Titaniu AISI 3	nitic, Fer nsitic sta m alloy 04, AISI	ritic and inless s 306, Ti-	teel, 6Al-4V	Harde Cobal AISI 6 15-5P	ned stai y chromi 30, AISI H, 17-4P	nless st um alloy 631, H	eel,	Coppe	r, Copp	er alloy
DC (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cut ap (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cu ap (mm)	t Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cut ap (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cut ap (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cut ap (mm)
3	120	13000	720	3	100	11000	440	3	80	8500	340	3	60	6400	250	1.5	150	16000	890	3
4	120	9500	720	4	100	8000	450	4	80	6400	340	4	60	4800	250	2	150	12000	900	4
5	120	7600	720	5	100	6400	460	5	80	5100	300	5	60	3800	230	2.5	150	9500	900	5
6	120	6400	720	6	100	5300	460	6	80	4200	310	6	60	3200	240	3	150	8000	900	6
7	120	5500	730	7	100	4500	470	7	80	3600	330	7	60	2700	250	3.5	150	6800	950	7
8	120	4800	840	8	100	4000	560	8	80	3200	400	8	60	2400	300	4	150	6000	1100	8
9	120	4200	810	9	100	3500	540	9	80	2800	350	9	60	2100	260	4.5	150	5300	1000	9
10	120	3800	800	10	100	3200	520	10	80	2500	340	10	60	1900	260	5	150	4800	1000	10
12	120	3200	750	12	100	2700	480	12	80	2100	340	12	60	1600	260	6	150	4000	940	12
14	120	2700	670	14	100	2300	420	14	80	1800	300	14	60	1400	240	7	150	3400	840	14
16	120	2400	620	16	100	2000	380	16	80	1600	290	16	60	1200	220	8	150	3000	780	16
18	120	2100	570	18	100	1800	380	18	80	1400	260	18	60	1100	210	9	150	2700	730	18
20	120	1900	540	20	100	1600	350	20	80	1300	260	20	60	950	190	10	150	2400	680	20
										DC
Depth of cut												ap
																			D	C : Dia.

General-purpose conditions

I

Work Material	Carbon Mild st AISI 1 A36, A	steel, A eel 045, AIS ISI 1010	lloy steel I 4140,	, ASTM	Pre-ha Carbo Alloy t AISI P 4340	rdened s n steel, A ool steel 21, AISI	teel, lloy stee P20, AI	l, SI	Auste Marte Titaniu AISI 3	nitic, Fer nsitic sta m alloy 04, AISI	ritic and inless s 306, Ti-	teel, 6Al-4V	Harde Cobal AISI 6 15-5P	ned stai y chromi 30, AISI H, 17-4P	nless st um alloy 631, H	eel,	Coppe	r, Copp	er alloy
DC (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cut ap (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cu ap (mm)	t Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cut ap (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cut ap (mm)	Cutting speed (m/min)	Revolution (min-1)	Table feed (mm/min)	Depth of cut ap (mm)
3	100	11000	490	3	80	8500	300	3	60	6400	200	3	50	5300	170	1.5	120	13000	580	3
4	100	8000	490	4	80	6400	310	4	60	4800	200	4	50	4000	170	2	120	9500	580	4
5	100	6400	490	5	80	5100	310	5	60	3800	200	5	50	3200	170	2.5	120	7600	580	5
6	100	5300	490	6	80	4200	310	6	60	3200	200	6	50	2700	170	3	120	6400	580	6
7	100	4500	500	7	80	3600	320	7	60	2700	200	7	50	2300	170	3.5	120	5500	620	7
8	100	4000	600	8	80	3200	380	8	60	2400	240	8	50	2000	200	4	120	4800	720	8
9	100	3500	540	9	80	2800	330	9	60	2100	210	9	50	1800	180	4.5	120	4200	650	9
10	100	3200	540	10	80	2500	330	10	60	1900	210	10	50	1600	180	5	120	3800	640	10
12	100	2700	510	12	80	2100	320	12	60	1600	210	12	50	1300	170	6	120	3200	600	12
14	100	2300	460	14	80	1800	300	14	60	1400	190	14	50	1100	150	7	120	2700	540	14
16	100	2000	410	16	80	1600	290	16	60	1200	170	16	50	990	140	8	120	2400	500	16
18	100	1800	390	18	80	1400	260	18	60	1100	170	18	50	880	130	9	120	2100	460	18
20	100	1600	360	20	80	1300	260	20	60	950	150	20	50	800	130	10	120	1900	430	20
Depth of cut										DC		ap
																			D	C : Dia.

In these cases the feed and speed should be reduced proportionately. I157 Note 4) When the depth of cut is smaller than shown the feed rate can be increased.

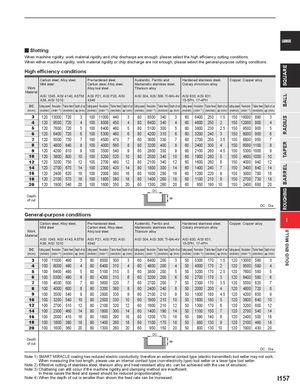

Общий каталог Mitsubishi 2020 - 2021 - страница 916
