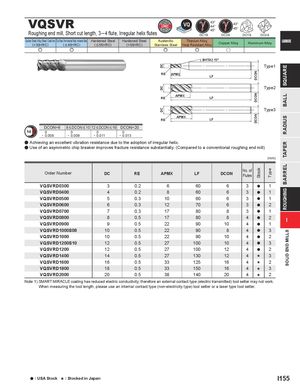

VQSVR
Roughing end mill, Short cut length, 3─4 flute, Irregular helix flutes 45°
DC<8 DC 8 DC<8 DC 8
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, CARBIDE
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
BHTA2 15° Type1 RE APMX LF
Type2 APMX LF RE Type3 APMX RE LF DCON=6 8<DCON< 10 12< DCON< 16 DCON=20
| 0 | 0 | 0 | 0 |
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a Achieving an excellent vibration resistance due to the adoption of irregular helix. a Use of an asymmetric chip breaker improves fracture resistance substantially. (Compared to a conventional roughing end mill) (mm)
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQSVRD0300 | 3 | 0.2 | 6 | 60 | 6 | 3 | a | 1 |
| VQSVRD0400 | 4 | 0.2 | 8 | 60 | 6 | 3 | a | 1 |
| VQSVRD0500 | 5 | 0.3 | 10 | 60 | 6 | 3 | a | 1 |
| VQSVRD0600 | 6 | 0.3 | 12 | 70 | 6 | 3 | a | 2 |
| VQSVRD0700 | 7 | 0.3 | 17 | 80 | 8 | 3 | a | 1 |
| VQSVRD0800 | 8 | 0.5 | 17 | 80 | 8 | 4 | a | 2 |
| VQSVRD0900 | 9 | 0.5 | 22 | 90 | 10 | 4 | a | 1 |
| VQSVRD1000S08 | 10 | 0.5 | 22 | 90 | 8 | 4 | a | 3 |
| VQSVRD1000 | 10 | 0.5 | 22 | 90 | 10 | 4 | a | 2 |
| VQSVRD1200S10 | 12 | 0.5 | 27 | 100 | 10 | 4 | a | 3 |
| VQSVRD1200 | 12 | 0.5 | 27 | 100 | 12 | 4 | a | 2 |
| VQSVRD1400 | 14 | 0.5 | 27 | 130 | 12 | 4 | s | 3 |
| VQSVRD1600 | 16 | 0.5 | 33 | 125 | 16 | 4 | s | 2 |
| VQSVRD1800 | 18 | 0.5 | 33 | 150 | 16 | 4 | s | 3 |
| VQSVRD2000 | 20 | 0.5 | 38 | 140 | 20 | 4 | s | 2 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
: USA Stock : Stocked in Japan I155
