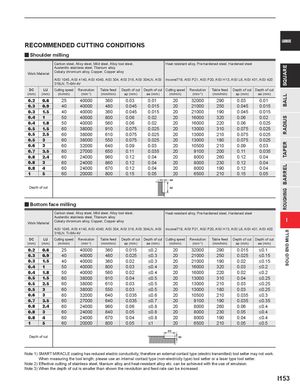

SQUAREBALLRADIUSTAPERBARRELROUGHINGSOLID END MILLS CARBIDE RECOMMENDED CUTTING CONDITIONS y Shoulder milling Carbon steel, Alloy steel, Mild steel, Alloy tool steel, Heat resistant alloy, Pre-hardened steel, Hardened steel Austenitic stainless steel, Titanium alloy Work Material Cobaly chromium alloy, Copper, Copper alloy AISI 1045, AISI 4140, AISI 4340, AISI 304, AISI 316, AISI 304LN, AISI Inconel718, AISI P21, AISI P20, AISI H13, AISI L6, AISI 431, AISI 420 316LN, Ti-6Al-4V DC LU Cutting speed Revolution Table feed Depth of cut Depth of cut Cutting speed Revolution Table feed Depth of cut Depth of cut (mm) (mm) (m/min) (min-1) (mm/min) ap (mm) ae (mm) (m/min) (min-1) (mm/min) ap (mm) ae (mm) 0.2 0.6 25 40000 360 0.03 0.01 20 32000 290 0.03 0.01 0.3 0.9 40 40000 480 0.045 0.015 20 21000 250 0.045 0.015 0.3 1.5 40 40000 360 0.045 0.015 20 21000 190 0.045 0.015 0.4 1 50 40000 800 0.06 0.02 20 16000 320 0.06 0.02 0.4 1.8 50 40000 560 0.06 0.02 20 16000 220 0.06 0.025 0.5 1.5 60 38000 910 0.075 0.025 20 13000 310 0.075 0.025 0.5 2.5 60 38000 610 0.075 0.025 20 13000 210 0.075 0.025 0.5 3 60 38000 550 0.075 0.025 20 13000 180 0.075 0.025 0.6 3 60 32000 640 0.09 0.03 20 10500 210 0.09 0.03 0.7 3.5 60 27000 650 0.11 0.035 20 9100 200 0.11 0.035 0.8 2.4 60 24000 960 0.12 0.04 20 8000 260 0.12 0.04 0.8 3 60 24000 860 0.12 0.04 20 8000 230 0.12 0.04 0.8 4 60 24000 670 0.12 0.04 20 8000 190 0.12 0.04 1 5 60 20000 800 0.15 0.05 20 6500 210 0.15 0.05 ae Depth of cut ap y Bottom face milling Carbon steel, Alloy steel, Mild steel, Alloy tool steel, Heat resistant alloy, Pre-hardened steel, Hardened steel Austenitic stainless steel, Titanium alloyWork MaterialCobaly chromium alloy, Copper, Copper alloy I AISI 1045, AISI 4140, AISI 4340, AISI 304, AISI 316, AISI 304LN, AISI Inconel718, AISI P21, AISI P20, AISI H13, AISI L6, AISI 431, AISI 420 316LN, Ti-6Al-4V DC LU Cutting speed Revolution Table feed Depth of cut Depth of cut Cutting speed Revolution Table feed Depth of cut Depth of cut (mm) (mm) (m/min) (min-1) (mm/min) ap (mm) ae (mm) (m/min) (min-1) (mm/min) ap (mm) ae (mm) 0.2 0.6 25 40000 360 0.015 <0.2 20 32000 290 0.015 <0.1 0.3 0.9 40 40000 480 0.025 <0.3 20 21000 250 0.025 <0.15 0.3 1.5 40 40000 360 0.02 <0.3 20 21000 190 0.02 <0.15 0.4 1 50 40000 800 0.03 <0.4 20 16000 320 0.03 <0.2 0.4 1.8 50 40000 560 0.02 <0.4 20 16000 220 0.02 <0.2 0.5 1.5 60 38000 910 0.04 <0.5 20 13000 310 0.04 <0.25 0.5 2.5 60 38000 610 0.03 <0.5 20 13000 210 0.03 <0.25 0.5 3 60 38000 550 0.03 <0.5 20 13000 180 0.03 <0.25 0.6 3 60 32000 640 0.035 <0.6 20 10500 210 0.035 <0.3 0.7 3.5 60 27000 640 0.035 <0.7 20 9100 190 0.035 <0.35 0.8 2.4 60 24000 960 0.06 <0.8 20 8000 260 0.06 <0.4 0.8 3 60 24000 840 0.05 <0.8 20 8000 230 0.05 <0.4 0.8 4 60 24000 670 0.04 <0.8 20 8000 190 0.04 <0.4 1 5 60 20000 800 0.05 <1 20 6500 210 0.05 <0.5 ae Depth of cut ap Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. Note 2) Effective cutting of stainless steel, titanium alloy and heat-resistant alloy etc. can be achieved with the use of emulsion. Note 3) When the depth of cut is smaller than shown the revolution and feed rate can be increased. I153
