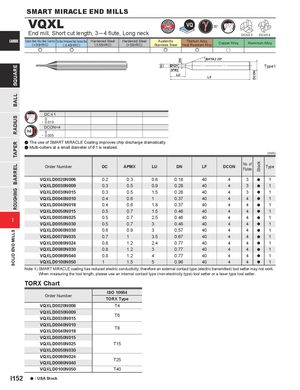

VQXL
End mill, Short cut length, 3─4 flute, Long neck
DC<0.3 DC>0.4
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
BHTA2 20° Type1 APMX LU
LF
DC < 1 0 - 0.010 DCON=4 0 - 0.005 a The use of SMART MIRACLE Coating improves chip discharge dramatically. a Multi-cutters at a small diameter of & 1 is realized. (mm)
| Order Number | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| VQXLD0020N006 | 0.2 | 0.3 | 0.6 | 0.18 | 40 | 4 | 3 | a | 1 |
| VQXLD0030N009 | 0.3 | 0.5 | 0.9 | 0.28 | 40 | 4 | 3 | a | 1 |
| VQXLD0030N015 | 0.3 | 0.5 | 1.5 | 0.28 | 40 | 4 | 3 | a | 1 |
| VQXLD0040N010 | 0.4 | 0.6 | 1 | 0.37 | 40 | 4 | 4 | a | 1 |
| VQXLD0040N018 | 0.4 | 0.6 | 1.8 | 0.37 | 40 | 4 | 4 | a | 1 |
| VQXLD0050N015 | 0.5 | 0.7 | 1.5 | 0.46 | 40 | 4 | 4 | a | 1 |
| VQXLD0050N025 | 0.5 | 0.7 | 2.5 | 0.46 | 40 | 4 | 4 | a | 1 |
| VQXLD0050N030 | 0.5 | 0.7 | 3 | 0.46 | 40 | 4 | 4 | a | 1 |
| VQXLD0060N030 | 0.6 | 0.9 | 3 | 0.57 | 40 | 4 | 4 | a | 1 |
| VQXLD0070N035 | 0.7 | 1 | 3.5 | 0.67 | 40 | 4 | 4 | a | 1 |
| VQXLD0080N024 | 0.8 | 1.2 | 2.4 | 0.77 | 40 | 4 | 4 | a | 1 |
| VQXLD0080N030 | 0.8 | 1.2 | 3 | 0.77 | 40 | 4 | 4 | a | 1 |
| VQXLD0080N040 | 0.8 | 1.2 | 4 | 0.77 | 40 | 4 | 4 | a | 1 |
| VQXLD0100N050 | 1 | 1.5 | 5 | 0.96 | 40 | 4 | 4 | a | 1 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
TORX Chart
| Od Nb | ISO 10664 |
| rer umer | TORX Type |
| VQXLD0020N006 | T4 |
| VQXLD0030N009 VQXLD0030N015 | T6 |
| VQXLD0040N010 | T8 |
| VQXLD0040N018 | |
| VQXLD0050N015 | |
| VQXLD0050N025 | T15 |
| VQXLD0050N030 | |
| VQXLD0080N024 | T25 |
| VQXLD0080N040 | |
| VQXLD0100N050 | T40 |
