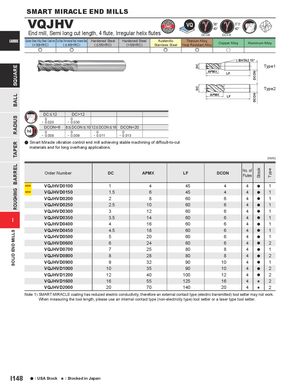

Общий каталог Mitsubishi 2020 - 2021 - страница 907
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
VQJHV
38° 37.5°
End mill, Semi long cut length, 4 flute, Irregular helix flutes 40° 40°
DC 6 DC>6
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
BHTA2 15° Type1 APMX LF
Type2 APMX LF
| DC | 12 DC>12 | ||
| 0 | 0 | ||
| - 0.020 | - 0.030 | ||
| DCON=6 8< DCON <10 12 <DCON<16 DCON=20 | |||
| 0 | 0 | 0 | 0 |
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a Smart Miracle vibration control end mill achieving stable machining of difficult-to-cut materials and for long overhang applications. (mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQJHVD0100 | 1 | 4 | 45 | 4 | 4 | a | 1 |
| VQJHVD0150 | 1.5 | 6 | 45 | 4 | 4 | a | 1 |
| VQJHVD0200 | 2 | 8 | 60 | 6 | 4 | a | 1 |
| VQJHVD0250 | 2.5 | 10 | 60 | 6 | 4 | a | 1 |
| VQJHVD0300 | 3 | 12 | 60 | 6 | 4 | a | 1 |
| VQJHVD0350 | 3.5 | 14 | 60 | 6 | 4 | a | 1 |
| VQJHVD0400 | 4 | 16 | 60 | 6 | 4 | a | 1 |
| VQJHVD0450 | 4.5 | 18 | 60 | 6 | 4 | a | 1 |
| VQJHVD0500 | 5 | 20 | 60 | 6 | 4 | a | 1 |
| VQJHVD0600 | 6 | 24 | 60 | 6 | 4 | a | 2 |
| VQJHVD0700 | 7 | 25 | 80 | 8 | 4 | a | 1 |
| VQJHVD0800 | 8 | 28 | 80 | 8 | 4 | a | 2 |
| VQJHVD0900 | 9 | 32 | 90 | 10 | 4 | a | 1 |
| VQJHVD1000 | 10 | 35 | 90 | 10 | 4 | a | 2 |
| VQJHVD1200 | 12 | 40 | 100 | 12 | 4 | a | 2 |
| VQJHVD1600 | 16 | 55 | 125 | 16 | 4 | s | 2 |
| VQJHVD2000 | 20 | 70 | 140 | 20 | 4 | s | 2 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
